Electronic component pick-and-place machine NPM-TT2

Electronic component pick-and-place machine NPM-TT2

NPM-TT2 01.jpg

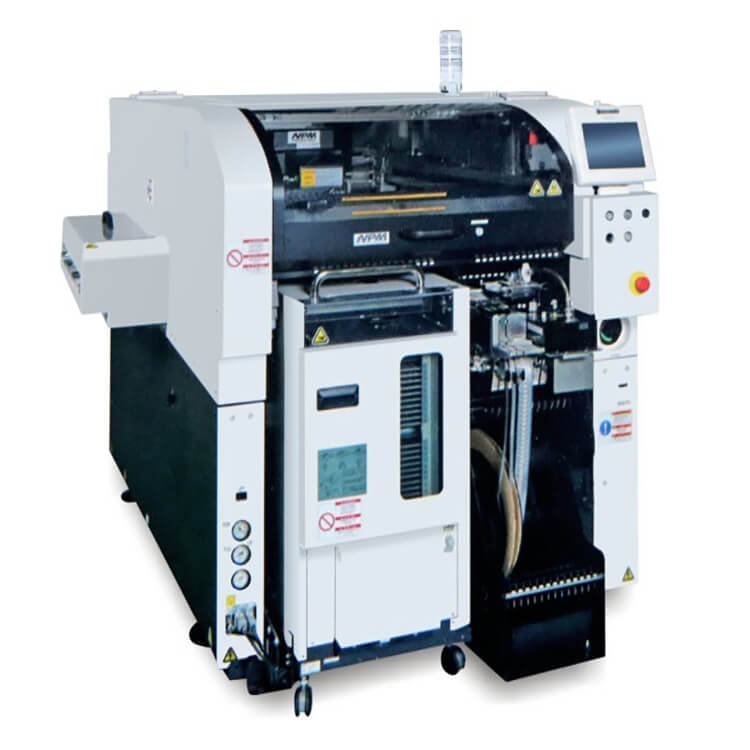

The NPM-TT2 (Next Production Modular-Twin Tray II) platform represents the next generation in twin tray modular production from Panasonic’s award-winning NPM platform—ideal for any mix. Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time. Featuring an advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities. KEY FEATURES Compatible with lightweight 8-nozzle or 3-nozzle head V2 Part Range: (01005) 0402 chip to 1 20L x 90W x 28T to BGA up to 80 x 80 component range Process up to 40 trays and 26 fixed tape and reel inputs per side for a total of 92 available inputs Minimize downtime with pre-pickup smart tray component inspection and interchangeable feeder and tray locations Compatible with CM and NPM-series intelligent feeders & nozzles PCB Dimensions (mm) - PC size Single-lane mode: L 50 x W 50 ~ L 510 x W 590 Dual-lane mode: L 50 x W 50 ~ L 510 x W 300 PCB Dimensions (mm) - M size Single-lane mode: L 50 x W 50 ~ L 510 x W 510 Dual-lane mode: L 50 x W 50 ~ L 510 x W 260 PCB Exchange Time - Single-lane mode: 4.0 s (With no component mounted on the reverse side of PCB) Dual-lane mode: 0 s* *No 0s when cycle time is 4.0 s or less Electric Source - 3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA Pneumatic Source - Min.0.5 MPa, 200 L /min (A.N.R.) Dimensions (mm) * - W 1,300 [*2] x D 2,798 [*3] x H 1,444 [*4]
