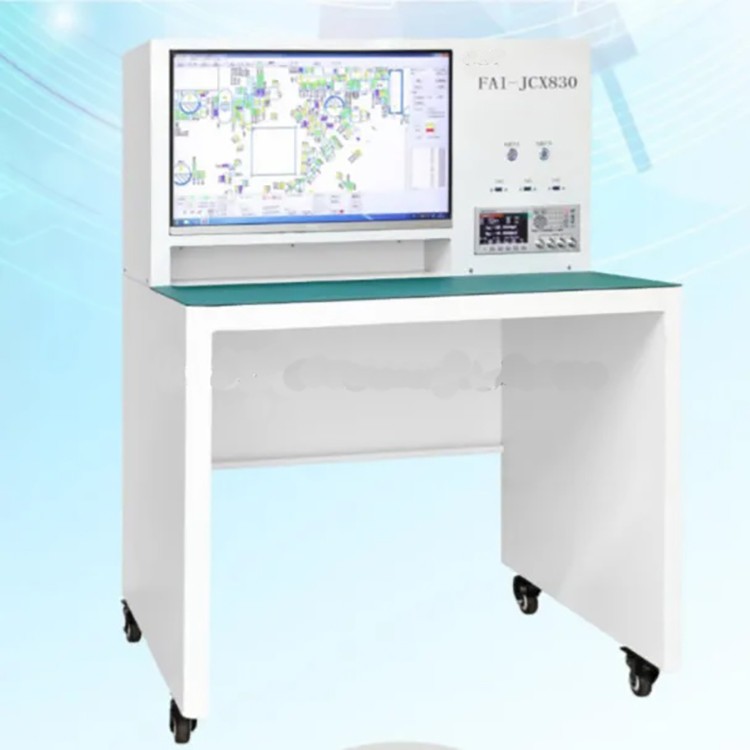

830 First article Inspection after pick and place machine

control host and

 CPU

Industrial host Intel i5

System

Windows 7 64

Memory

DDR4 8G

hard disk

120G Solid +1T Mechanical

Supply and power

AC220V 300W

Test signal frequency

20Hz-300KHz

LCR brand

Tonghui LCR Custom Bridge JCX830

Measurement display range

L 0.00001uH-99999H C 0.00001PF-99999uF

R 0.00001Ω-99.999MΩ

measurement accuracy

0.05%

test program

Automatic generation (via BOM and CAD location drawing) in ≤3 minutes

Device query

Automatic display of tested and untested devices

judgement result

Automatically switch the test gear and automatically determine the result

program storage

Test program storage, direct call, without repeated programming

Report generation speed

≤20S

software language

Chinese/English/Japanese

programmatically

offline programming

Warranty

1 year

Size

L860mm*D800mm*H1190mm

manual

PDF English
