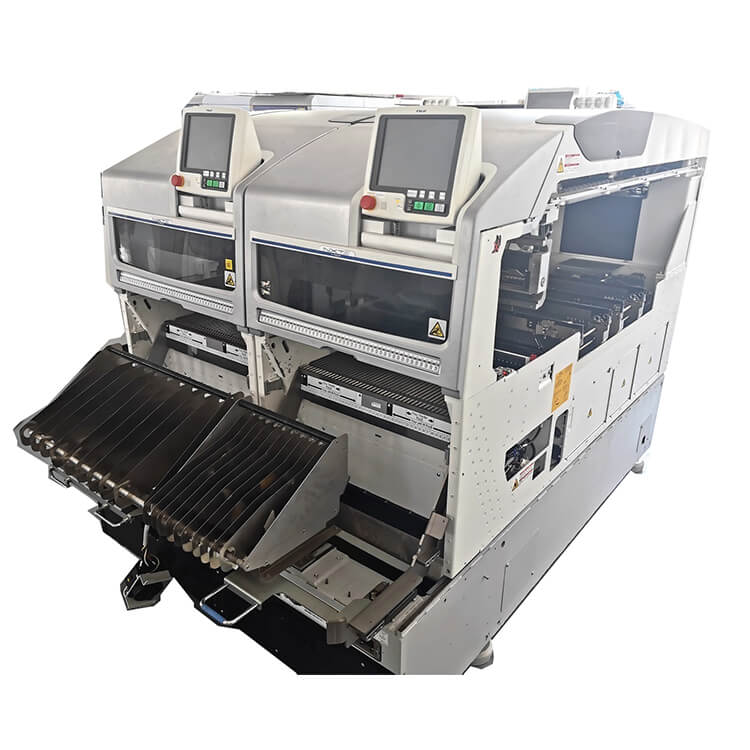

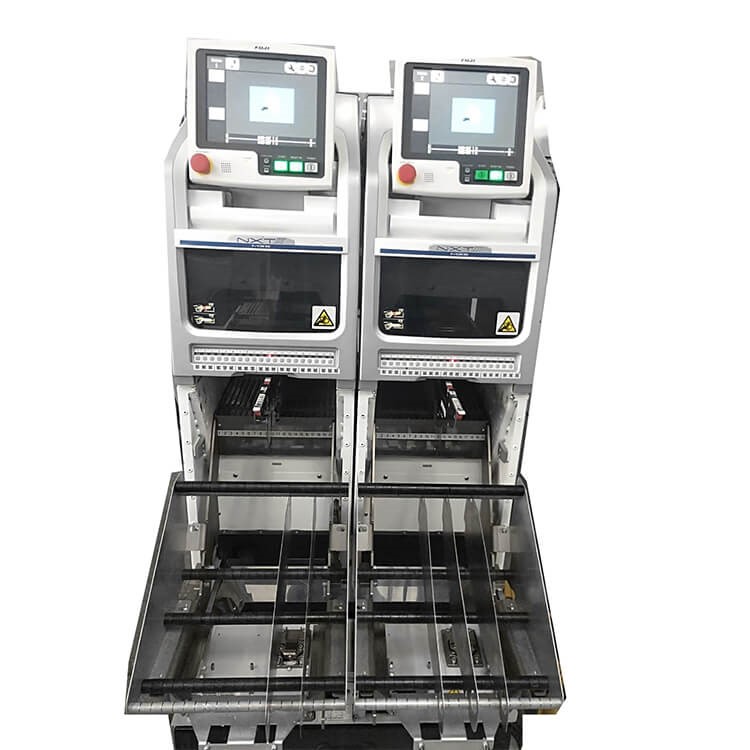

FUJI NXT M3 III Pick and Place Machine

FUJI NXT M3 III Pick and Place Machine

Fuji Scalable Placement Platform NXT 3rd generation is the latest evolution of its scalable
modular mounting platform, the NXT series. The NXT III expands on the concepts of the NXT II
to achieve new levels of productivity and placing quality. A faster XY robot and faster tape feeders, as well as a newly developed “flying vision” parts camera, mean increased placing ability for all part sizes and types. The new H24 high-speed head achieves 35,000 CPH per module, a 35% improvement from the fastest speed of the NXT II. The NXT III can handle the next generation of components heading for the market - 03015 mm parts. And by improving machine rigidity and further refining its independent servo control and vision recognition technology, it has achieved the industry-leading placing accuracy for small chip parts of ±25 μm. The GUI interface combined with a touchscreen panel to improve usability. The NXT III inherits the flexibility of the NXT Series, can be flexibility configured to match the production conditions.

Fuji NXT-M3 Mounter Specifications:
machine type:
NXT-M3
PCB size:
Minimum: 48mmx48mm
Maximum: 510mmx534mm
(Single handling track)
Patch speed:
H12HS: 22,500; H08: 10,500; H04: 6,500; H01: 4,200
Patch accuracy:
H12S / H08 / H04: 0.05mm (3sigma) cpk≥1.00
Patch range:
H12S: 0402 ~ 7.5x7.5mm high: MAX: 3.0mm
H08: 0402 ~ 12x12mm high: MAX: 6.5mm
H04: 1608 ~ 38x38mm high: MAX: 13mm
H01 / H02 / OF: 1608 ~ 74x74mm (32X180mm) High: MAX: 25.4mm
G04: 0402 ~ 15.0mmx15.0mm high: MAX 6.5mm
Carrying rack:
MAX: 20 kinds / module (8mm tape conversion)
using electric:
3P / 200V / 10KVA
Air flow:
0.5 MPa (5 kgf / cm2), 10 NI / min.
Dimensions:
2M II Base: 740 (L) x 1934 (W)
4M II Base: 1390 (L) x 1934 (W)
H: 1474 mm (M3 II) 1476 mm (M6 II / M6 IISP)
Machine weight:
1,350kg
By loading the newly developed H24G head on the NXT III, 008004″ (0.25 x 0.125 mm)

components can be supported without any change to the specifications of the machine

(speed: 35,000 cph, accuracy: ±25 μm). The Intelligent Part Sensor (IPS), which

checks the orientation of parts on the nozzle and ensures that the part

does not remain on the nozzle after placement, is standard on the H24G placement head.

As part sizes get increasingly smaller and more delicate, lower impact forces during

placement are required. The 008004″ (0.25 x 0.125 mm) part nozzles developed

for the H24G head achieve an impact force of no greater than 0.5 N without any

reduction in operation speed.
Orders for the H24G head and 008004″ (0.25 x 0.125 mm) part nozzles will start to be

taken from January 2015.
Fuji is planning to demonstrate the H24G head and 008004″ (0.25 x 0.125 mm) part nozzles

Please drop by the booth to see some 008004″ (0.25 x 0.125 mm)

components being placed at high speed.
