Control System:
PLC+touch screen
heating method:
Infrared heating
Working height:
900±20mm
Delivery method:
Track + chain
PCB Board component height:
±100mm

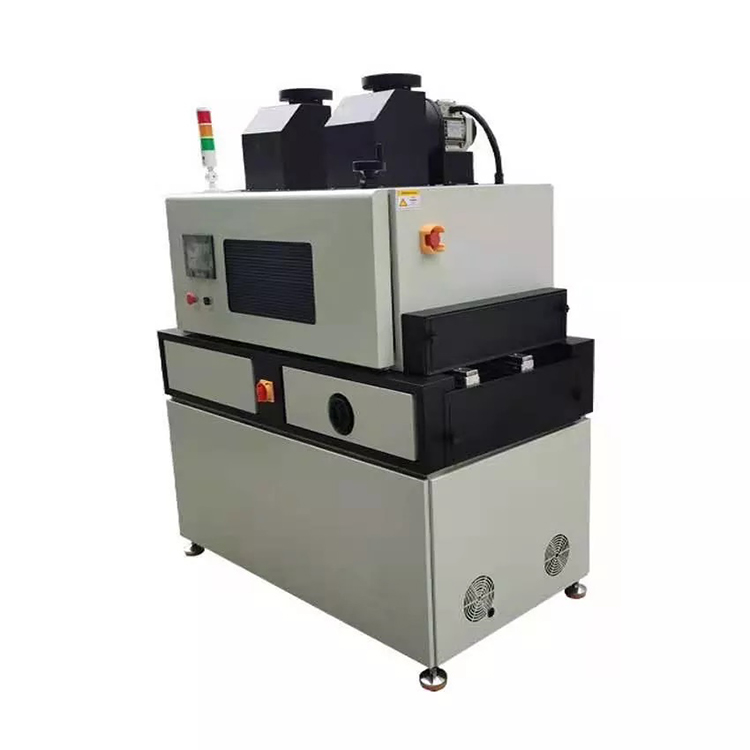

UV Infrared Heating System Powder Coating Curing Oven
Technical parameters of infrared curing oven | |||
Model | CY-2000 | CY-3000 | CY-4000 |
Dimensions(L×W×H) | 2000x1160x1340mm | 3000x1160x1340mm | 4000x1160x1340mm |
Control System | PLC+touch screen | ||
heating method | Infrared heating | ||
Working height | 900±20mm | ||
Delivery method | Track + chain | ||
PCB Board component height | ±100mm | ||
amplitude modulation | Manual | ||
Width adjustment range | 50-450mm | ||
Conveying speed | 1-3m/min | ||
Transportation direction | Left right (standard) | ||
Number of temperature zones | 3 | 4 | 5 |
Heating time | |||
temperature range | room temperature-150℃ | ||
Temp Accuracy | ±5℃ | ||
supply voltage | three-phase 380V,8A | ||
