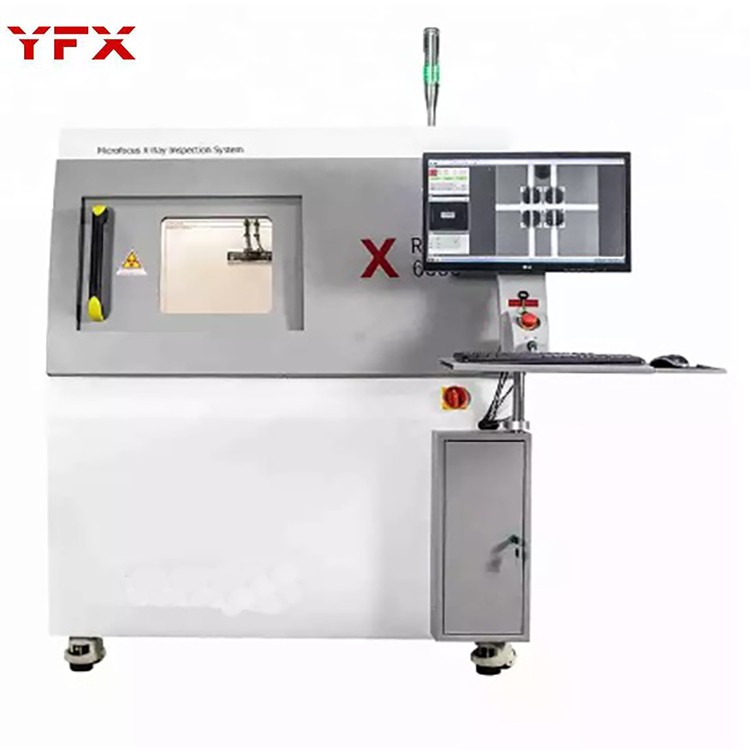

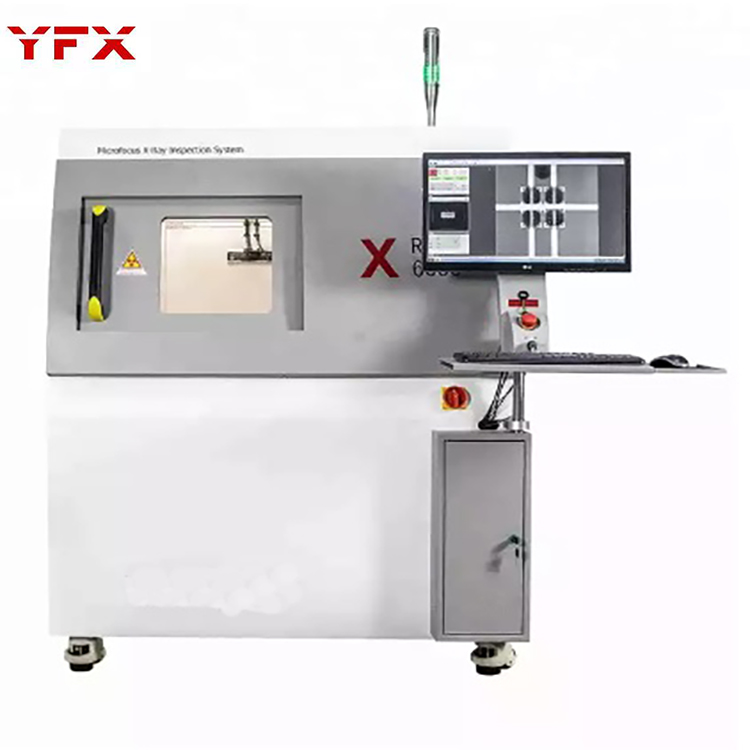

X6600 90KV Universal X Ray BGA Inspection Test Equipment

Applications of X-Ray

X-Ray inspection system is high-precision detection equipment. It inspects and analyzes the inner structure of the object without damage via the penetration power from X-Ray.

It has been widely applied to BGA detection, LED, SMT, semiconductor, battery, automotive electronics, ceramic products, casting, plastic, connectors, 3D image analysis, pharmaceutical products and other industries.

Specific application:

• Meet the needs of the general industrial X-ray machine and have a wide range of applications.

• A high-resolution design can obtain the best image in a very short time.

• Infrared automatic navigation and positioning, quickly select the shooting location.

• CNC detection mode, fast automatic detection for multi-point array.

• Oblique multi-angle inspection makes it easier to detect sample defects.

• The X-ray tube and FDP can be rotated at the same time (0-60°), making the detection image more clear and intuitive.

Technical Parameters
