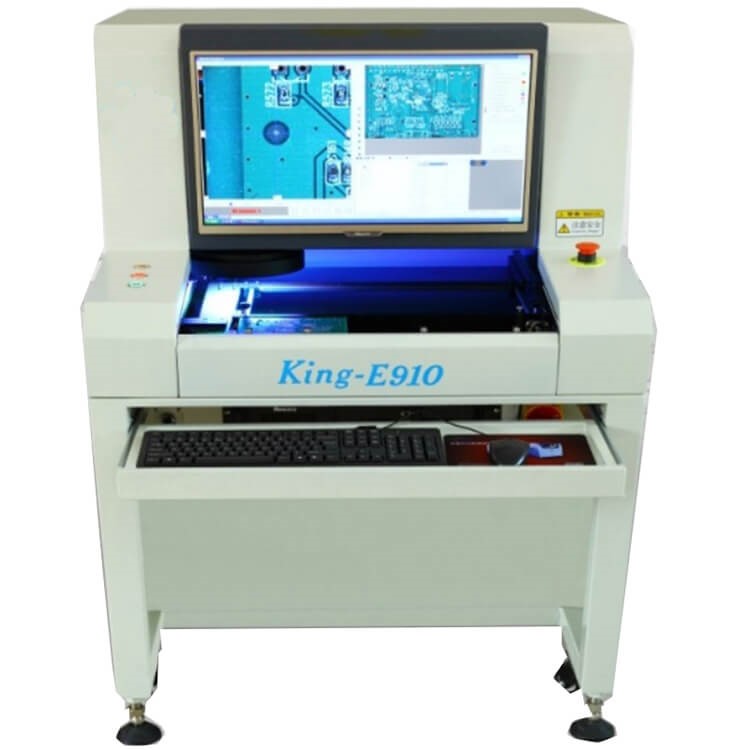

AOI testing equipment KING-E910 offline parameters

visual identification system

Discrimination method

A variety of logic algorithms, picture comparison, color image comparison/shape outline comparison/binarization reference comparison (simple operation and programming)

camera

Color industrial CCD camera 5 million pixels

light source

RGB+W white light, ring structure light source, imported ROHS standard LED light

Image processing speed

0402 CHIP

< 6ms

Processing time per screen

< 100ms

Test content

Solder Paste Printing

Missing printing, skew, continuous tin, less tin, more tin, open circuit, pollution

Part defect

Missing parts, offset, skewed, tombstone, side standing, flipped parts, reversed polarity, wrong parts, damaged

Solder joint defect

More tin, less tin, continuous tin, virtual soldering

Anti-static measures

Anti-static socket

computer system

PCB size

Min: 25mm×25mm, Max: 350mm×450mm

(larger specifications can be customized according to the specific requirements of customers)

PCB thickness

0.5mm~2.5mm

PCB Warpage

<2mm(There is a fixture to assist in correcting the deformation) (special requirements can be customized)

part height

0.5mm-25mm (special requirements can be customized)

smallest part

The smallest component that can be measured is 0201

X、Y platform

drive device

High-precision screw (Taiwan HIWIN on silver), and imported Mitsubishi servo motor motor system

Precise positioning

<25 um (0.025mm)

Moving speed

700mm/S (MAX)

Software system

operating system

preinstalled：Microsoft Win7/ Win10

Identify the control system

Features

Statistical shape modeling, learning OK samples, automatically establishing standard images for points, lines, surfaces and volumes, identifying data and error thresholds

operate

Graphical programming, built-in component library, automatic generation of detection frame according to component shape selection criteria, precise automatic positioning, micron bit fine-tuning, fast process

Mark

points

2 commonly used Mark points can be selected, and the multi-mark function of imposition

Recognition speed

0.5S/PCS

Control System

computer host

Industrial Control Computer, Intel CPU, DDR4 4G, HDD 240G Solid State Drive

display

24-inch brand monitor

Other parameters

Mechanical Dimensions(L*W*H)

870mm * 950mm * 1320mm

Weight

about 350 kg

power supply

AC 220V±10%, frequency 50/60Hz, rated power 1KW

(UPS uninterruptible power supply optional)
