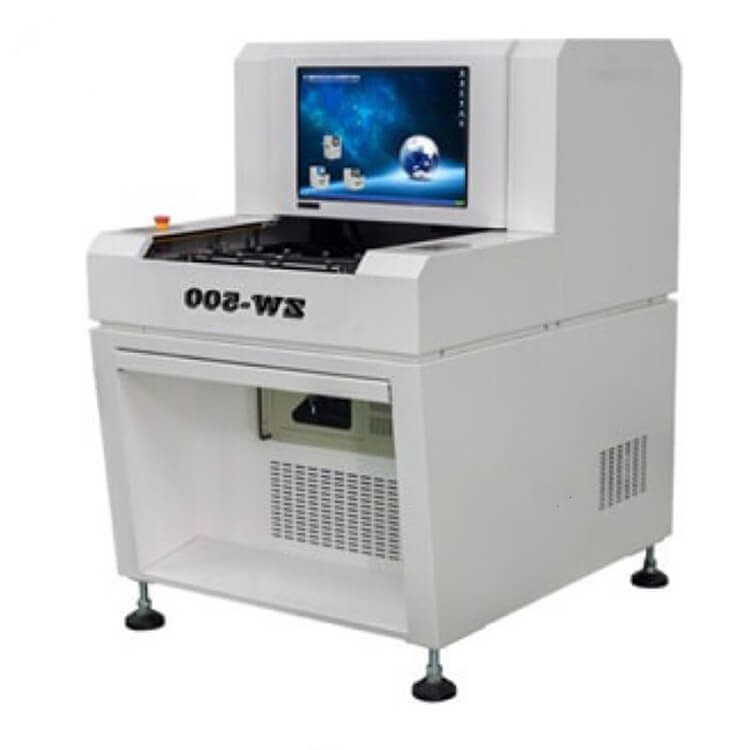

Automated Optical Inspection Machine ZW 625

PCB size 20*20mm (Min) ~ 450*330mm (Max), can be customized for special applications
PCB thickness0.3~5.0mm
PCB weight Max:3KG

EMAIL

Automated Optical Inspection Machine ZW 625




Technical Specifications

Test your ability

Applicable process

After SMT solder paste printing, before/after SMT reflow soldering, before/after DIP wave soldering

Programming mode

Manually written, automatically written, CAD data import automatic corresponding component library

Detection type

Solder paste printing: presence, offset, less tin, more tin, open circuit, even tin, pollution, scratches, etc.

Parts defects: missing parts, multiple pieces, offset, skew, tombstone, side stand, flip, wrong piece, broken, reverse,

Solder joint defects: tin, tin, solder, tin, solder balls, glue, pins not exposed, copper foil contamination.

Calculation method

Color calculation, color extraction, grayscale calculation, image contrast, etc.

Detection mode

Optimized inspection technology covering the entire board, jigsaw and multi-mark, including Bad mark function

SPC statistics function

Record test data and perform statistics and analysis throughout, and view production status and quality analysis in any area




Minimum part

01005 chip,0.3 pitch IC

Optical configuration

camera

Full color high speed industrial digital camera 5 million pixels

Lens resolution

10um/15um/18um/20um/25um, can be customized for special applications

light source

Ring stereo multi-channel color light, depending on the application, choose RGB/RGBW/RGBR/RWBR

computer

CPU

Intel i7 3.40GHz


GPU

NVIDIA 4GB


RAM

16GB


HDD

256GB solid state drive + 1TB mechanical hard drive


OS

Win 8.1 64bit

Monitor

22inch,16:10


computer system

Shipping and inspection methods

Manual pick and place board, Y servo motor move PCB, X servo motor drive camera take picture


PCB size

20*20mm (Min) ~ 450*330mm (Max), can be customized for special applications


PCB thickness

0.3~5.0mm

PCB weight

Max:3KG


PCB edge

3mm, can be customized for special applications

PCB bending

<5mm or 3% of PCB diagonal length

PCB part height

Top: 35mm, Bottom: 75mm. Adjustable, customizable for special applications

XY drive system

AC servo motor, precision ground ball screw

XY moving speed

Max:830mm/s

XY positioning accuracy

8um
