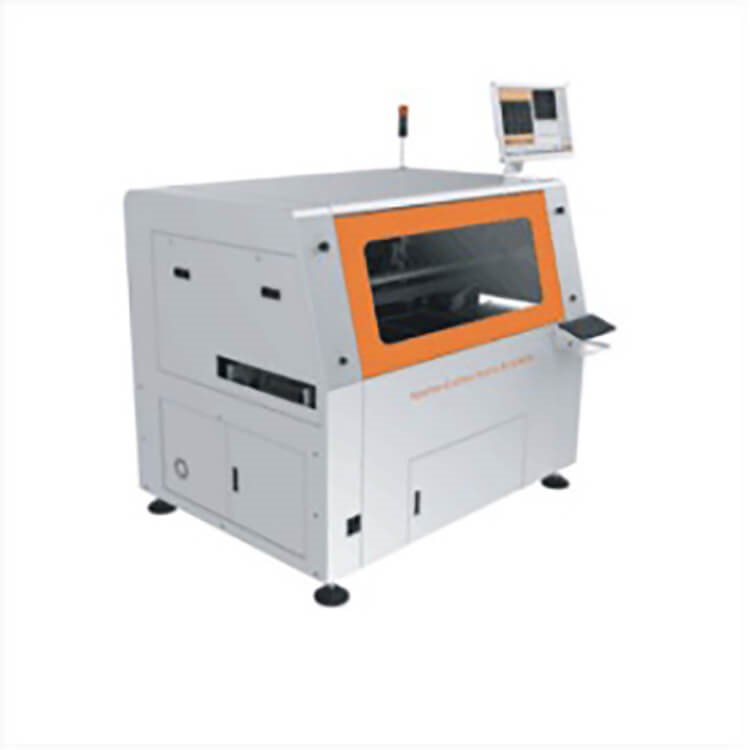

SMT High Precision ONLINE PCB Laser Cutting Machine
1.Solution for Low-Stress Depanelization
2.Advanced Image-Processing Software Offers Point-and-Click Operation for Programming Router Paths.
3.The high-speed spindle can realize no postmark hole cutting, and the distance of the components from the cutting path can reach 0.5mm
4.Advanced image processing software and concise icons and scanning functions
5.Automatic Alignment Compensation by CCD Camera
6.Extended Router Bit Life
7.Router Programming Goes High-Tech
8.A quick and easy method to learn and use
9.Ideal for programming arcs and circles
10.Real time display of cutting pattern, sequence and X/Y coordinates
11.Short product change-over time
MODEL | MT-3000-IN-AS |
workbench | Double work table |
cutting method | milling cutter |
Operating mode | ONLNE |
The scope of work | 350*350mm |
Cutting board thickness | ≤3.0mm |
X,Y cutting speed | 0 ~100mm/s |
Machine repeatability | ± 0.01mm |
Cut repeatability | ±0.05mm |
equipped | KEYENCE SR710 Fixed Scanner |
Seven-axis control mode | Adopt industrial IPC and PC |
Seven-axis drive | AC Servo motor |
Human-machine operation and data storage | PC system |
Spindle speed | Max 100000rpm |
monitor | 22-inch high-definition flicker free display |
Host voltage | 220V 1ψ 50 / 60HZ |
Air supply | 4.5kg/cm2 above |
monitor rate | 2200W |
Host size | 1680*1298*1700mm |
Main unit net weight | 1100KG |
Dust collection method | Lower dust collection (standard) |
suction table | External device system |
MES system | dockable |
equipped | 3 sets of suction cups, 1 set of universal suction cups, 2 wooden fixtures for each equipment distribution |
Overboard height |
