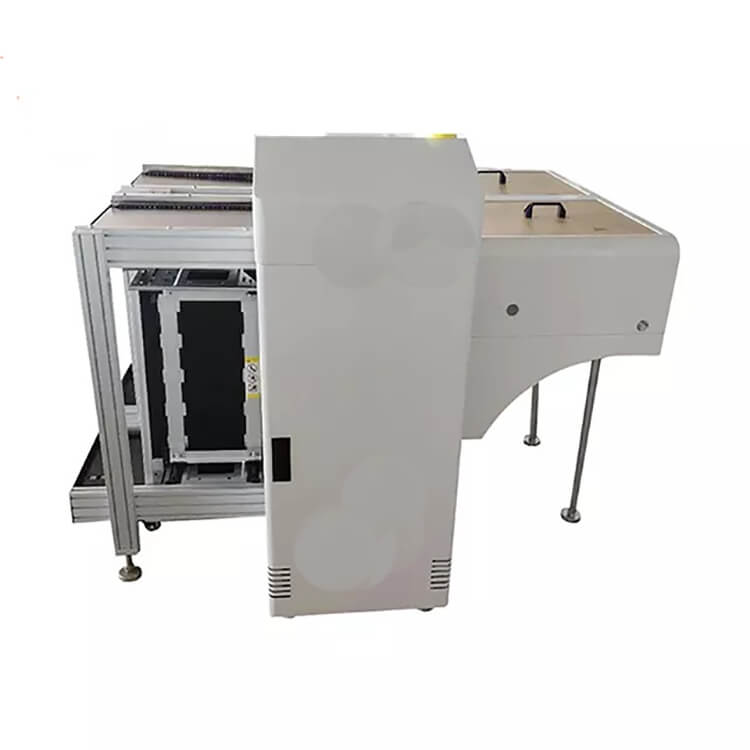

Automatic SMT PCB NG OK unloader

Dimension: 1730*1530*1250
SMT PCB NG/OK Unloader Machine
Weight: Approx.: 340kg
PCB Size: 50*50 to 530*460
Product description: SMT PCB NG/OK Unloader Machin

EMAIL

Automatic SMT PCB NG OK unloader

NG OK unloader1.jpg


Features::
1.Outer structure: sheet metal structure and aluminum profile into the frame, surface spray treatment, the color is corrugated white.
2. Microcomputer Panasonic PLC control system, stable and reliable.
3.The touch screen display operation has automatic fault diagnosis function, and the man-machine dialogue is convenient.
4. Multiple sound and light and alarm function in the touch screen.
5. The rack lifting step can be set according to the thickness of the PCB.
6. With automatic counting function, it is convenient for production statistics.
7.User-friendly design ensures that PCB boards are not broken and improve output capacity

8.The lower connection PCB board adopts the motor to send the board to the material frame.

9.Stepper motor push plate, the force can be adjusted, the speed can be set on the touch screen

10.Push plate device uses two head limit to protect PCB board

11. The OK board is loaded into the front frame, and the NG board is transferred into the fabric frame.

12.Double line number distinguishes NG\OK



Scope of application

No.

Scope of application

Name

825NG

833NG

839NG

1

Applicable frame size

355*320*563mm

460*400*563mm

535*460*563mm

2

PCB board size (MM)

350*(50-250)

450*(50-330)

530*(50-390)

3

Dimensions L*W*H(MM)

1600*1450*1250

1900*1600*1250

2100*1750*1250

4

Body weight

320KG

380KG

420KG

5

Applicable frame size

200W

250W

300W

6

Power supply

Single phase 220V

7

PCBboard thick

0.6-3.0mm

8

Lifting step

10,20,30,40,(mm)Arbitrarily set

9

Compressed air

5-6KG

10

Fixed edge

PREVIOUS:SMT PCBA In-line Cleaning Machine NEXT:Multi Function Automatic PCB LED Vacuum Magazine Loader machine
