SMT 1.2m Vacuum Automatic suction Machine bare pcb loader

Air Pressure 4-6 bar
Air Consumption30 Ltr/min max
Conveyor Height 900±20mm (or specify)
PCB Conveyor Direction L→R / R→L(Option)

EMAIL

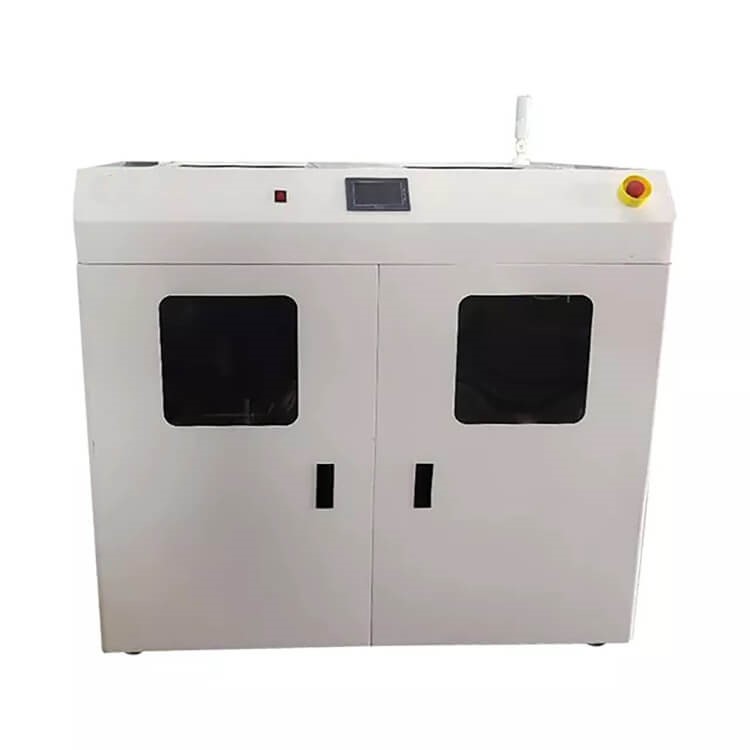

SMT 1.2m Vacuum Automatic suction Machine bare pcb loader

1.2m Vacuum suction1.jpg


Features:

Closed design guarantees the highest level of safety

The top safety cover can be opened for easy handling of the machine hardware during maintenance

Easy to use touch screen function control interface

Adjustable nozzle position ensures clamping of the board

Robust balanced width adjustment (hand crank control screw adjustment)

Smaller machine footprint

Compatible SMEMA interface



Technical Parameters:

Description



This unit is used for loading lf bare PCBs onto the production line



Maximum PCBs Capacity



 300 pcs(0.6 mm thick PCB)



 Cycle Time

Approx. 10 seconds



 Power Source



 220-230VAC(specify),1ph

Power Consumption

180VA max

Air Pressure

 4-6 bar

Air Consumption

30 Ltr/min max



Conveyor Height



 900±20mm (or specify)



 PCB Conveyor Direction

 L→R / R→L(Option)

Specifications:


 Model

GW-XB350

Effective PCB Size
(L×W)~(L×W)



(50x50)~(650x350)



Dimension
(L×W×H)



880x1050x1200



 Weight

Approx.110kg
