Automatic spray fixture cleaning machine

Automatic spray fixture cleaning machine

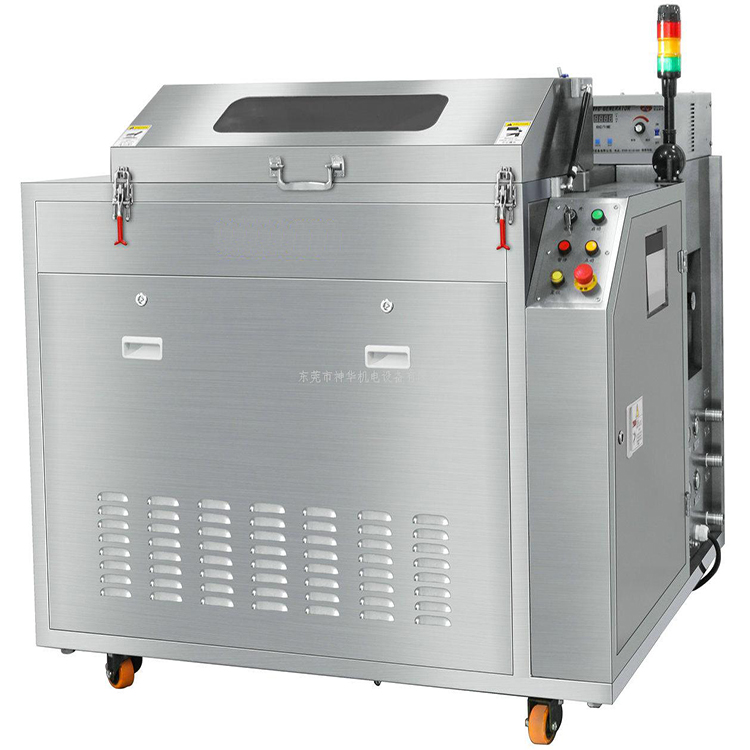

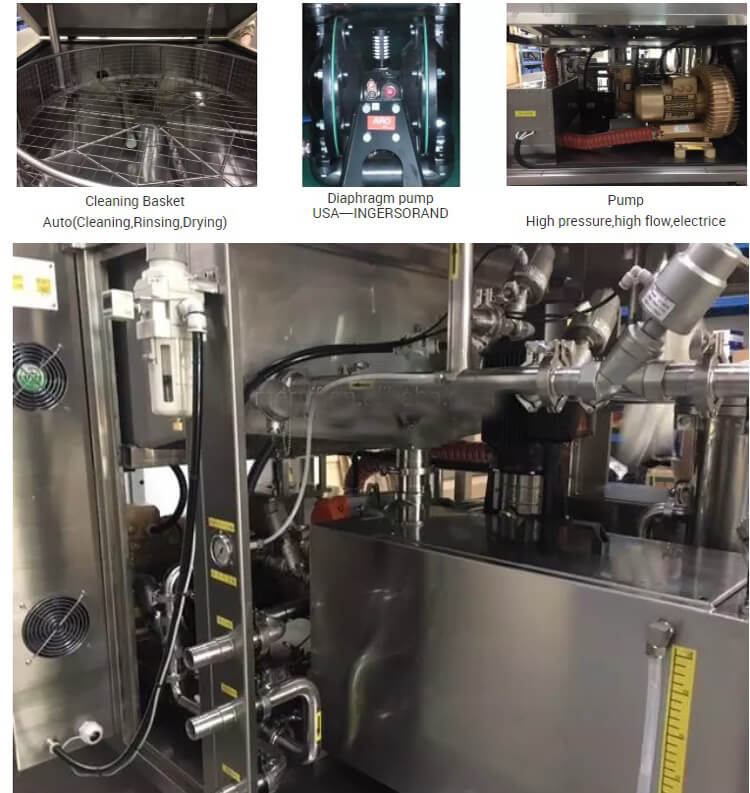

The machine consists of a cleaning system, a rinsing system, a drying system, a drainage system, a filtration system, a control system, etc. PLC program control, batch cleaning, a

utomatic completion of water-based solution cleaning + clean water rinsing + hot air drying and other processes, after cleaning, the jig is clean and dry, and can be put into use immediately

Machine features:

1. All SUS304 stainless steel structure, welded by the whole machine, strong and durable, resistant to acid and alkali corrosion, beautiful appearance.

2. 1 meter diameter cleaning basket, multiple pieces of fixtures are placed at a time to achieve batch cleaning.

3. Above, below, front spray bar, rotating cleaning basket, all-round coverage, cleaning without dead angle.

4. The cleaning pressure reaches 6kg / cm2, and the cleaning solution completely penetrates the bottom of the jig, and the cleaning is thorough.

5. PLC program control, touch screen operation, cleaning parameters can be set and modified as needed.

6. One-button simple operation, high pressure cleaning + high pressure rinsing + hot air drying process is completed automatically in one time.

7. Cleaning liquid heating and heat preservation function.

8. The cleaning liquid and rinsing liquid are circulated and filtered in the machine, saving the solution and reducing the cost of use.

9. The standard is equipped with the function of automatically adding and rinsing rinsing liquid.

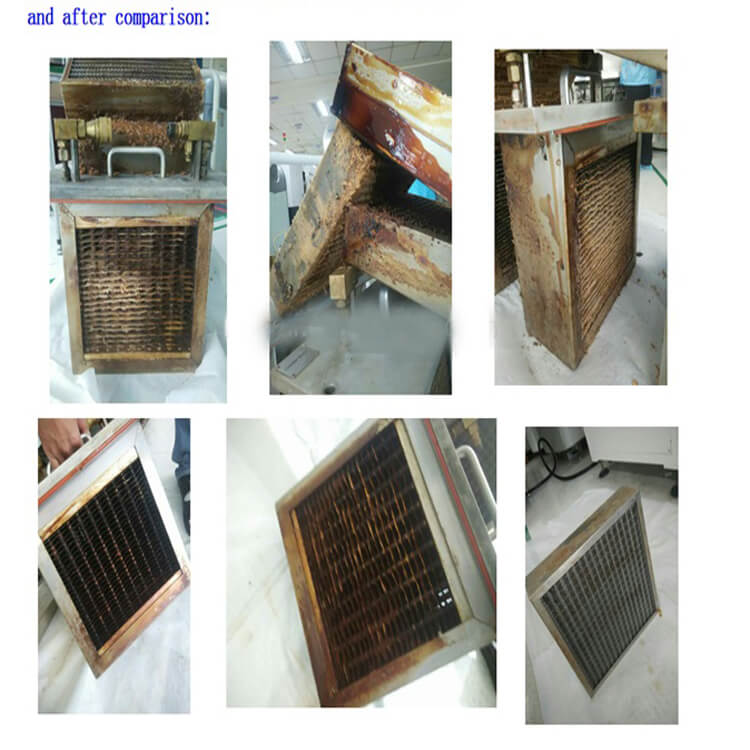

10. After cleaning, the surface of the jig is clean, dry and ready to use.

Machine specifications:

Item specifications

Cleaning basket size Φ1000mm x H 200mm, special specifications customized

Spray system up / down / front, 720 ° all-round coverage

3-stage filter system 1mm filter / 50um filter / 20um filter

Cleaning liquid tank capacity 80L

Rinse liquid tank capacity 80L

Cleaning spray pressure 5 ~ 6 kg / cm2

Cleaning time 5 ~ 15 minutes

Rinse time 1 ~ 3 minutes

Drying time 10 ~ 20 minutes

Heating temperature of cleaning solution: room temperature ~ 80 ℃

Hot air drying temperature Room temperature ~ 90 ℃

Cleaning pump power 2.2KW

Liquid heating power 9KW

Hot air heating power 9KW

Blower power 4.0KW

Air source 0.5 ~ 0.7Mpa

Power supply 3 P, AC 380V, 50 / 60HZ, 33KW

Machine size L1380 x W2100 x H 1400 (mm)

Machine weight 500KG
