Drying heater power: 6KW
Cleaning method: 360 ° rotating spray cleaning
Cleaning time: 5 to 20 minutes (reference)
Rinse time: 1 ～ 2 minutes / time

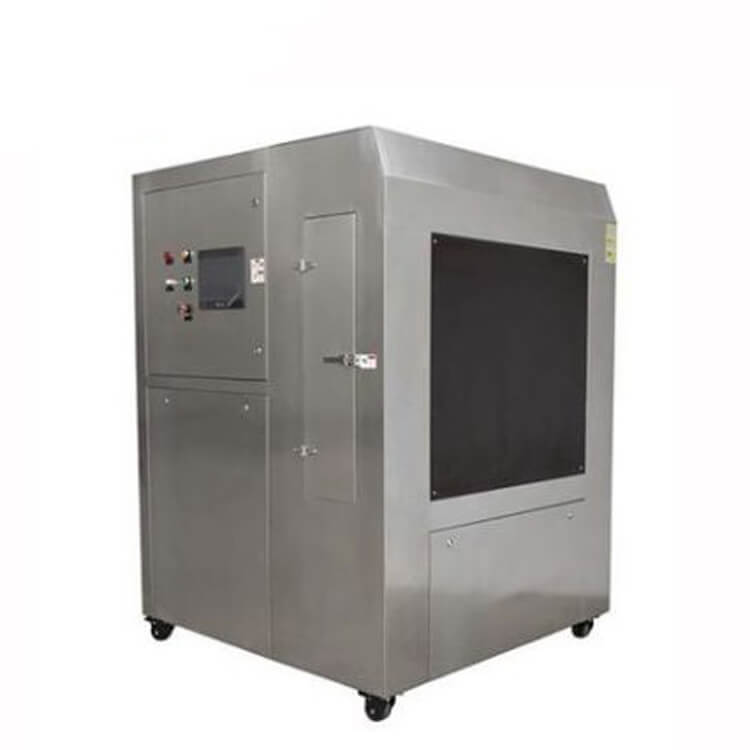

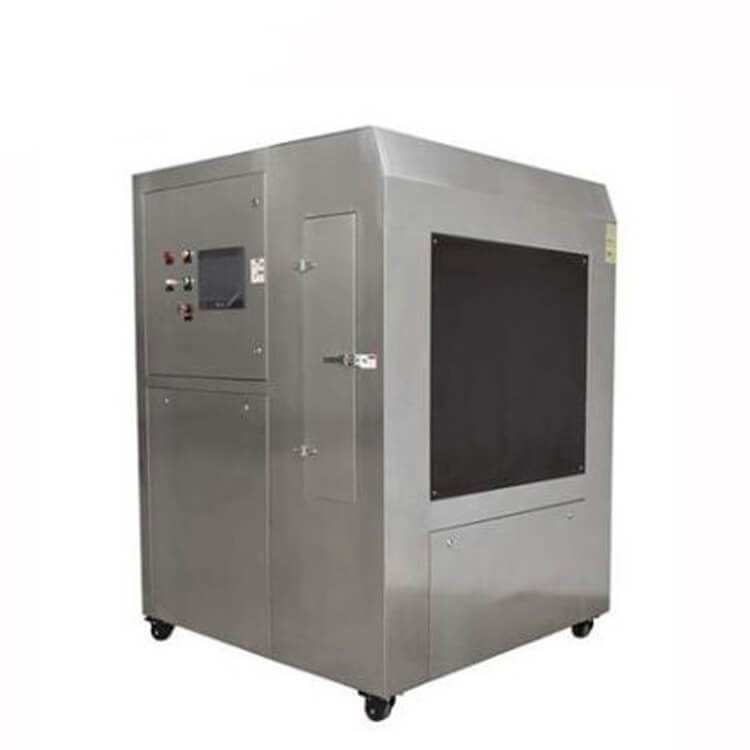

Electric steel mesh cleaning machine for PCBA Industry
Applicable stencil size | L750*W750*H400(mm)(Large size needs to be customized) |
Cleaning liquid capacity | 40L(MAX) |
Optimal liquid usage | 35L |
Cleaning method | 360 ° rotating cleaning liquid spray and high pressure air spray (washing → drying) |
Cleaning time | 2 ~ 5 minutes (conventional process) |
Drying time | 2 ~ 5 minutes (conventional process) |
External air source | 0.45mpa~0.7mpa |
Tin slag filtration method | Three-stage filtering |
Level 1 filtering | 10um(Filter impurities and labels) |
Level 2 filtering | 5um(Filter small particles and solder paste) |
Level 3 filtering | 1um(Filters small particles and rosin) |
Exhaust port size | φ120*40H(mm) |
Net weight of machine | 200kg |
Machine size | L945*W650*1650(mm) |
