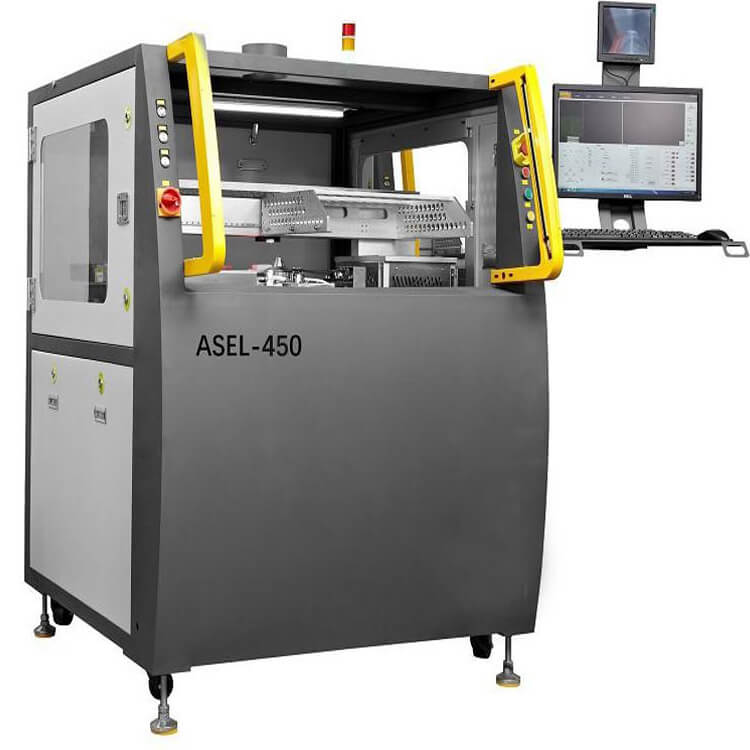

Flexible Lead Free SMT Selective Wave Soldering Machine ASEL-450

Required N2 pressure

3-4 Bars

Required N2 flow

>2Cubic/hour

Required N2 purity

>99.998%

Required exhausting

500--800CMB/H

EMAIL

Flexible Lead Free SMT Selective Wave Soldering Machine ASEL-450




Selective Wave Solering machine is represents the latest welding technology in SMT industry, which is more flexiable to select the solder position,

can cope with more precise welding requirements, meantime can save solders.



Specifications:

Machine name

ASEL-450

General

Dimension

L1280mm X W1400mm X H1650mm

General power

5kw

Consumption power

1--3kw

Power supply

AC 220V 50HZ

Net weight

380KG

Reuiqred air source

3-5 Bars

Required air flow

8-12L/min

Required N2 pressure

3-4 Bars

Required N2 flow

>2Cubic/hour

Required N2 purity

>99.998%

Required exhausting

500--800CMB/H

Carrier or PCB

Carrier

Can be used as needed

Max carrier size

L450 X W300MM

Max solder area

L400 X W300MM

PCB thickness

0.2mm 6mm

PCB edge

3mm above

Controlling & conveyor

Controlling

Industrial PC

PCB Loading board

Manual

PCB Unloading board

Manual

Operating height

900+/-30mm

PCBconveyor up clearance

50MM

PCBconveyor bottom clearance

30MM

Motion table

Motion axis

X, Y, Z

Motion control

Close loop Servo control

Position accuracy

±0.1 mm

Chassis

Steel structure welding

Flux management
