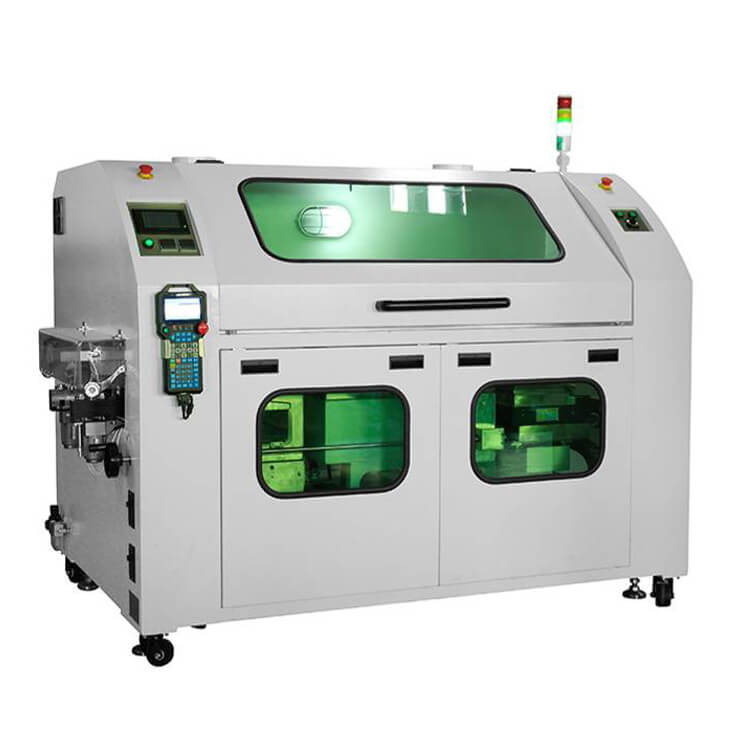

SMD DIP Selective Wave Soldering Machine 250

2

Air speed and temperature

Program set

3

Preheating time

Program set

welding

1

Welding mothod

Point selection group nozzle(single option)

2

Movement method

Tip fixed,PCB movement

3

Tin removal method

Standard 0 degree tin removal

4

Welding time and temperatures

Program set

5

Wave height and method

Program set

construct

1

Controlling method

Siemens PLC+ Touch Screen

2

Start power

5KW

3

Normal power consumption

2KW

4

Power and air supply

Singe phase 220V,start4kw,0.4MPa

5

Exhaust

Less 5M3/Min

6

Production range

30S/unit

7

weight

800KG

8

Dimension

L2764*W1260*H1450mm
