Hanwha SM471 Plus Pick and Place Machine

Component Range:0402(01005
Patch speed 78,000 CPH
2 Gantry x 10 Spindles/Head
weight 1820KG
Product description: Hanwha SM471 Plus Pick and Place Machine,Component Range:0402 above, Patch speed 78,000 CPH,2 Gantry x 10 Spindles/Head, weight 1820KG

EMAIL

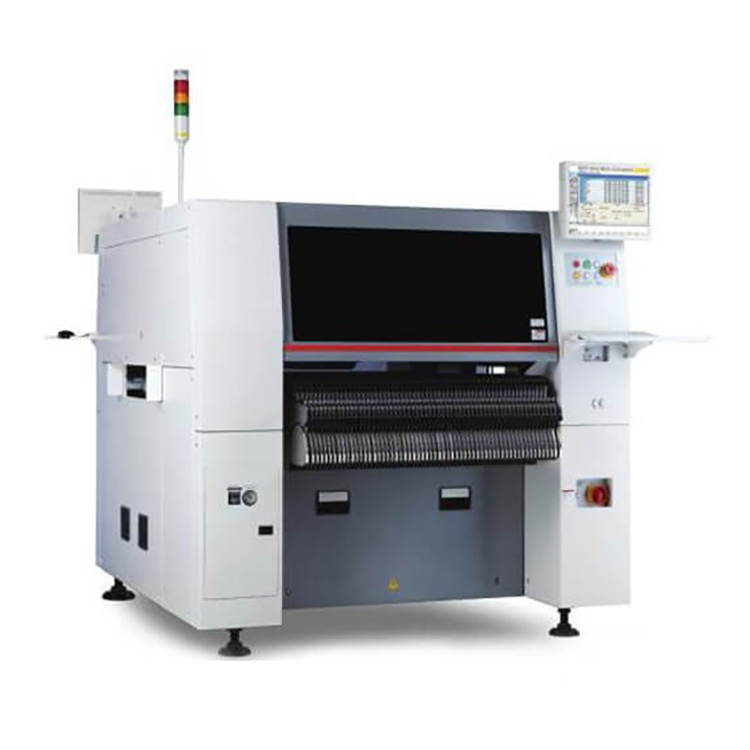

 Hanwha SM471 Plus Pick and Place Machine

471 plus 05.jpg


high-performance newer flying camera placement machine that delivers world-class top speeds of 78,000 CPH.

<p style="margin: 0px 0px 10px;color: rgb(6, 6, 6);text-indent: 0px;letter-spacing: normal;font-family: opensans, Arial, Helvetica, sans-serif;font-size: 14px;font-style: normal;font-weight: 400;word-spacing: 0px;white-space: normal;box-sizing: border-box;orphans: 2;widows: 2;background-color: rgb(255, 255, 255);font-variant-ligatures: normal;font-variant-caps: normal;-webkit-text-stroke-width: 0px" font-size:14px;background-color:#ffffff;"="">0402(01005")~14mm(h12mm) can be basically corresponding, and through the application of high-speed.<p style="margin: 0px 0px 10px;color: rgb(6, 6, 6);text-indent: 0px;letter-spacing: normal;font-family: opensans, Arial, Helvetica, sans-serif;font-size: 14px;font-style: normal;font-weight: 400;word-spacing: 0px;white-space: normal;box-sizing: border-box;orphans: 2;widows: 2;background-color: rgb(255, 255, 255);font-variant-ligatures: normal;font-variant-caps: normal;-webkit-text-stroke-width: 0px" font-size:14px;background-color:#ffffff;"="">High-precision electric feeder, improve the actual productivity and placement quality.Dual Lane System

PCB Loading Time of “ZERO” Maximizes actual productivity by minimizing the PCB transfer time by adopting a first-in-first-out type shuttle inlet conveyor. In addition, it supports various placement modes according to production characteristics.

Electrically Driven High Speed and High Accuracy

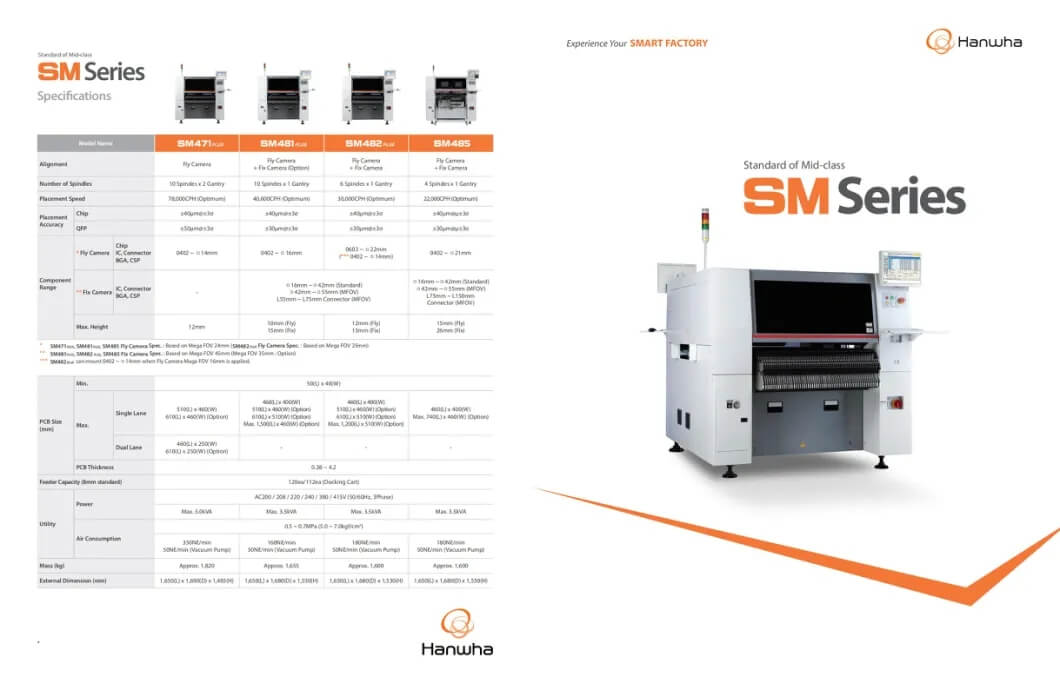

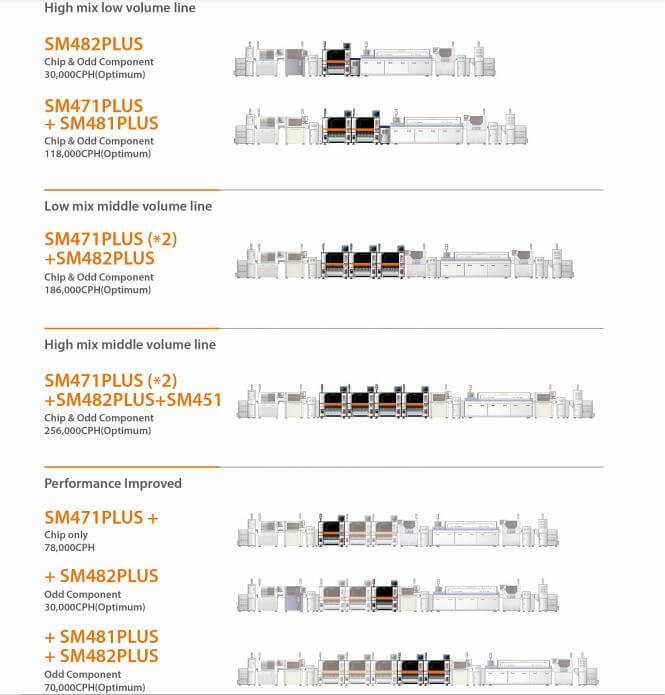

Specifications

SAMSUNG SMT pick and place machine

Model Name

SM471plus

SM481plus

SM482plus

Alignment

Flying Vision

Flying Vision+stage vision

Flying Vision+stage vision

Spindles

10 Spindles × 2 Gantries

10 Spindles × 1 Gantry

6 Spindles × 1 Gantry

Placement Speed

78,000CPH(Optimum)

40,000CPH(Optimum)

30,000CPH(Optimum)

Placement Accuracy

±40μm@μ±3σ

±40μm@μ±3σ

±40μm@μ±3σ

Applicable Parts

0402 ~ 14mm(H 12mm)

0402 ~ 42mm(H 15mm)

0402 ~ 55mm(H 15mm)

Applicable PCB(L × W)

Max. 510 × 460(Standard)

Max. 460 × 400(Standard)

Max. 460 × 400(Standard)

Max. 610 × 460(Option)

Max. 1500 × 460(Option)

Max. 1200 × 510(Option)

Dimension(L.D.H)

1650×1690×1458

1650×1680×1530

1650×1680×1458

Mass(Kg)

Approx. 1820

Approx. 1655

Approx. 1600
