Hanwha SM482 Plus Pick and Place Machine

Speed : 30,000CPH (Optimum)
PCB : Max. 460(L) x400(W)
Structure : 1 Gantry x 6 Spindles/Head
Component range: 0402 ~ 55mm(H 15mm)
Product description: Hanwha SM482 Plus Pick and Place Machine, Speed : 30,000CPH (Optimum), PCB : Max. 460(L) x400(W), Structure : 1 Gantry x 6 Spindles/Head, Component range: 0402 ~ 55mm(H 15mm), weight:1600KG.

EMAIL

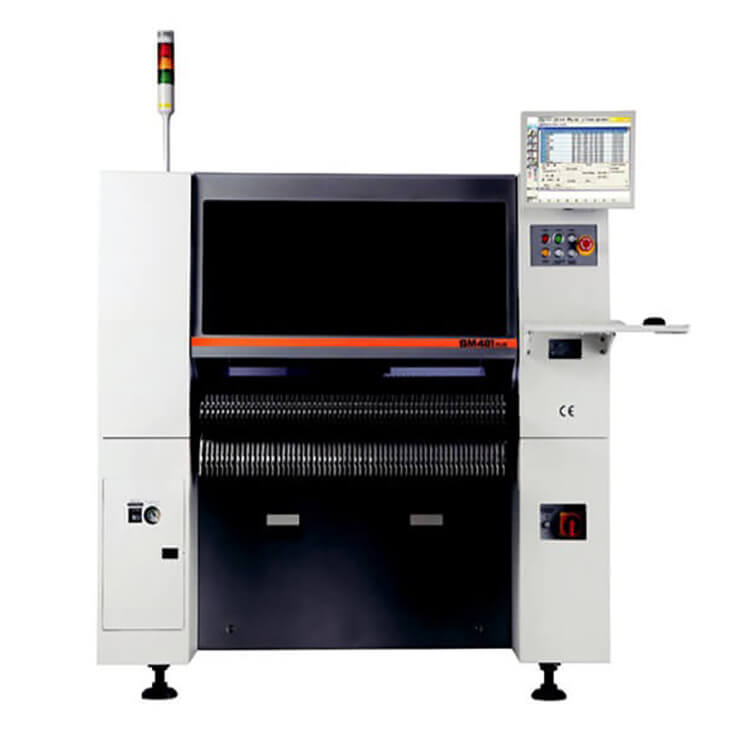

Hanwha SM482 Plus Pick and Place Machine

481plus 03.jpg

1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)

Top Advantage:1. Advanced High Speed Flexible Mounter.2. High Speed, High Precision and Electrically Driven Feeder.

3. New Vacuum System and Optimized Pickup/ Placement Motion.





Specifications

Hanwha SMT pick and place machine

Model Name

SM471plus

SM481plus

SM482plus

Alignment

Flying Vision

Flying Vision+stage vision

Flying Vision+stage vision

Spindles

10 Spindles × 2 Gantries

10 Spindles × 1 Gantry

6 Spindles × 1 Gantry

Placement Speed

78,000CPH(Optimum)

40,000CPH(Optimum)

30,000CPH(Optimum)

Placement Accuracy

±40μm@μ±3σ

±40μm@μ±3σ

±40μm@μ±3σ

Applicable Parts

0402 ~ 14mm(H 12mm)

0402 ~ 42mm(H 15mm)

0402 ~ 55mm(H 15mm)

Applicable PCB(L × W)

Max. 510 × 460(Standard)

Max. 460 × 400(Standard)

Max. 460 × 400(Standard)

Max. 610 × 460(Option)

Max. 1500 × 460(Option)

Max. 1200 × 510(Option)

Dimension(L.D.H)

1650×1690×1458

1650×1680×1530

1650×1680×1458

Mass(Kg)

Approx. 1820

Approx. 1655

Approx. 1600
