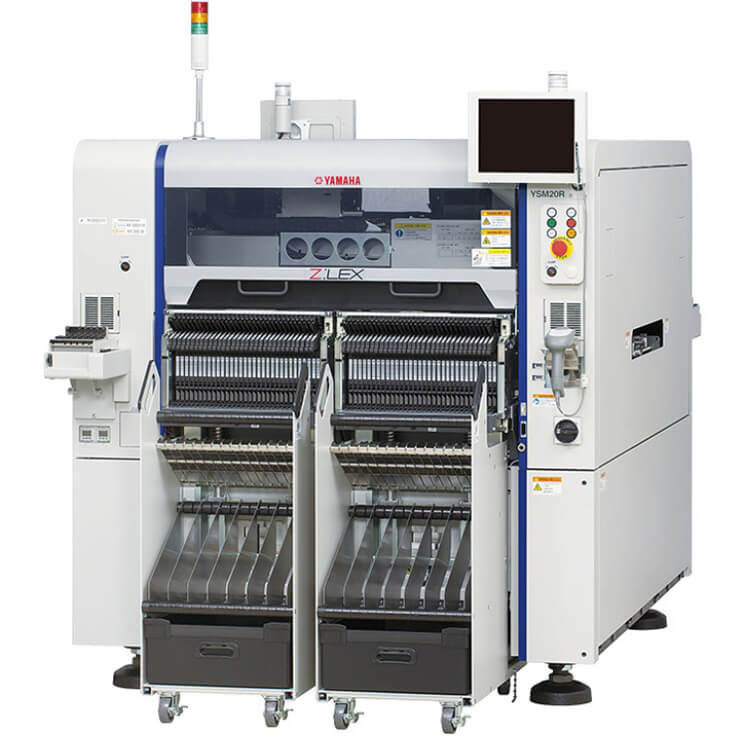

Yamaha Z LEX YSM20W Pick And Place Machine

Speed: 80,000 CPH
Applicable Components: 0201 to 45×45 mm
Size:L 1,374 x W 2,110 x H1,445mm
Weight:2500KG
Product description: Yamaha Z LEX YSM20W Pick And Place Machine,high Speed Chip Mounter -Speed: 80,000 CPH,Applicable Components: 0201 to 45×45 mm,Weight:2050KG,Size: L 1,374 x W 2,110 x H1,445mm

EMAIL

 Yamaha Z LEX YSM20W Pick And Place Machine



Basic Specifications:

Yamaha YSM20R

Yamaha YSM20W

Applicable PCB

Dual stage (only for X axis 2-beam specs.)
1 PCB conveyance : L810 x W490 to L50 x W50
2 PCB conveyance : L380 x W490 to L50 x W50
Single lane
L810 x W490 to L50 x W50
Dual lane (only for X axis 2-beam specs.)
L810 x W230 to L50 x W50

Single lane
L810 x W742 to L50 x W80
Dual lane (only for X axis 2-beam specs.)
L810 x W356 to L50 x W50

Mounting capability

X axis 2-beam : High-speed multi-purpose
(HM: High-speed Multi) head x 2
90,000CPH (under optimum conditions as defined by Yamaha Motor)

X axis 2-beam : High-speed multi-purpose
(HM: High-speed Multi) head x 2
80,000CPH (under optimum conditions as defined by Yamaha Motor)

Mounting accuracy
(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)

+/-0.035mm (+/-0.025mm) Cpk≧1.0 (3σ)

Applicable components

High-speed multi-purpose (HM: High-speed Multi) head x 2 : 03015 to 45 x 45mm L100mm, Height 15mm or less
Note : Multi-camera (option) may be needed in some cases due to part height and part size.
Odd-shaped components (FM: Flexible Multi) head : 03015 to 55 x 55mm L100mm, Height 28mm or less

Number of component types

Fixed plate : Max.140 types (conversion for 8mm tape feeder)
Feeder carriage exchange : Max.128 types (conversion for 8mm tape feeder)
Trays for 30 types (fixed) and 10 types (carriage)

Power supply

3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz

Air supply source

0.45MPa or more, in clean, dry state

External dimension (excluding projections)

L 1,374 x W 1,857 x H1,445mm

L 1,374 x W 2,110 x H1,445mm

Weight

Approx. 2,050 kg

Approx. 2,500 kg
