PCB board size (MM) 50mm-500*400mm
PCB thickness 0.8-3.0mm
Cycle Time About 10 seconds
Transfer height 910±20mm (or user specified)

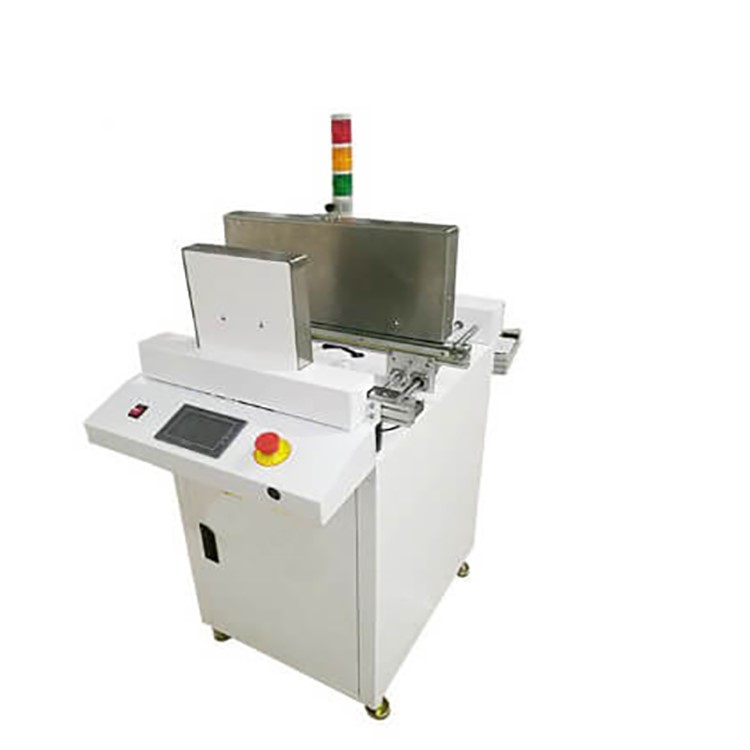

Automatic PCB Destacker Loader
Features:
Aluminum alloy rails are stable, durable and beautiful.
Microcomputer PLC control system, stable and reliable.
The touch screen display operation has automatic fault diagnosis function, and the man-machine dialogue is convenient.
Multiple sound and light and alarm function in the touch screen.
The height of the material wall can be adjusted according to the thickness of the PCB.
User-friendly design ensures that the PCB board is not broken and improves output capacity
It has the dual function of bare board automatic feeding board and PASS.
Adopt automatic board release mode, which effectively shortens the board time.
The electrical components of the equipment are well-known brands.
Standard SMEMA signal interface.
Smaller machine footprint.
No. | Range of application | |
1 | PCB board size (MM) | 50mm-500*400mm |
3 | PCB thickness | 0.8-3.0mm |
4 | Cycle Time | About 10 seconds |
5 | Transfer height | 910±20mm (or user specified) |
Transfer direction | Left → right or right → left (for easy change) | |
Body | ||
1 | Dimensions L*W*H(MM) | 600*800*1250 |
2 | Body weight | 120KG |
Control System | ||
1 | power supply | Single phase 220V |
2 | Starting power / no-load power | 105W |
3 | Air supply | 4-6kg |
4 | PLC | Siemens dedicated control PLC |
5 | touch screen | Samkoon4.3#Smart touch screen |
6 | Push knife | Made of special hardened steel |
7 | The electromagnetic valve | Aks Dual channel |
8 | Photoelectric sensor | Japan Omron photoelectric sensor |
9 | Transfer motor | Double stepper motor(42#) |
