Hanwha Decan S2 Flexible Mounter is a high speed SMT Machine capable of placing 03015 components and highly accurate, taking on the task of today's demanding and ever changing technology.

Optimum Placement rate of 92'000cph!!!

EMAIL

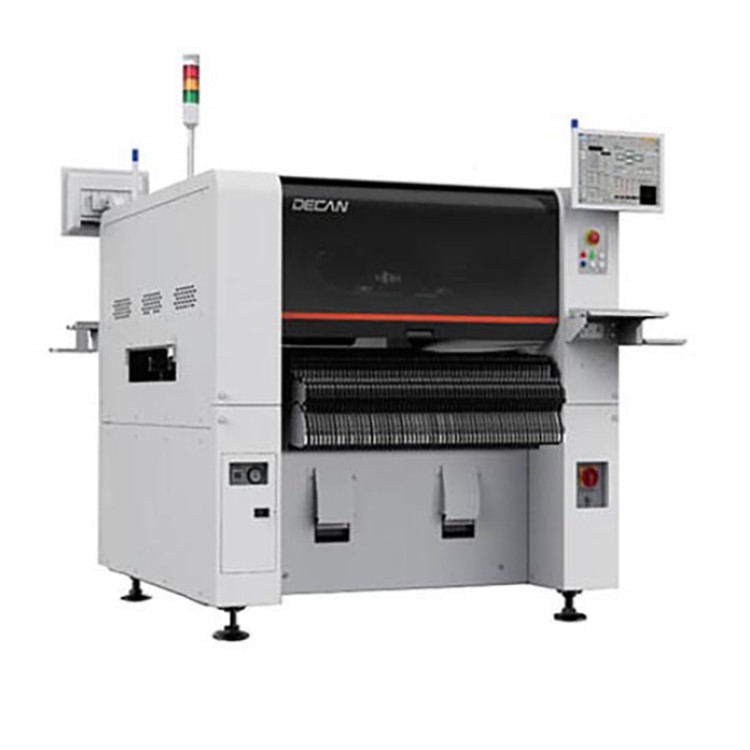

Hanwha Decan S2 SMT Pick And Place Machine

Decan S2 1.jpg

HIGH PRODUCTIVITY

Optimizing PCB transportation paths for productivity improvement

Modular Conveyors

    ■ An optimal conveyor model configuration is possible according to production line composition (shuttle ↔ dual) applied with a modular conveyor that is replaceable on site.

   ■ PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed

Twin Servo Control

    ■ Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head

    ■ Minimized head movement path through recognizing parts during transportation following parts installation

    ■ 10-spindle head with individually operating Z axes



HIGH RELIABILITY

Placement Accuracy: ±28㎛ (03015), ±25㎛ (IC)

    ■ Applied with a high-precision linear scale and rigid mechanism.

    ■ Provides precision calibration algorithms and diverse automatic calibration functions.



FLEXIBLE LINE SOLUTION

Provides optimal line solutions through versatility and productivity improvement

DECAN Line

    ■ Optimal line configuration from chips to uniquely-shaped components according to options setup

Equipment capable of responding to large-scale PCBs, which can be remodeled on site

    ■ Standard equipment can be remodeled on site to equipment capable of large-scale PCB handling

     – Responsive to a maximum 1,200 x 460mm PCB

Responsive to uniquely-shaped components (including tray components)



EASY OPERATION

Strengthened equipment software operation convenience

    ■ Convenient production and editing of work programs with built-in equipment optimization software

    ■ Provision of a range of work data and information on a large-scale LCD screen

High-precision, convenient electric feeder

    ■ Calibration and maintenance-free electric feeder

    ■ Improved work convenience with a single reel bank mounted feeder

    ■ Improved productivity through the provision of  automatic parts pick-up position alignment between feeders

Reduced work load through parts connection automation (smart feeder)

    ■ Automatic loading and splicing capabilities implemented as an industry first

     – Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually

    ■ Zero consumables costs for parts connection attained

Model

Decan S2

Decan F2

Decan L2

Spindles

2 gantry*10 spidles/head

2 gantry*10 spidles/head

2 gantry*6 spidles/head

Placement Speed

92000 cph (optimum)

80000cph  (optimum)

56000 cph(flying vision, optimum)

-0.14 seconds/component (flying vision, SOIC 0.5P)

-0.55 seconds/component (Upward vision, SOIC 0.5P)

Vision

Flying vision

Flying vision

Stage vision(option)

Placement accuracy

±28μm Cpk≥1.0(03015 chip)

±25μm CPK≥1.0(IC)

±40μm Cpk≥1.0(0402(01005 inch) chip)

±30μm CPK≥1.0(IC,stage vision)

Component range

03015-12mm(H10mm)

0402(01005)-16mm(H10mm)

Max. 42mm( H15mm)(option)

0402(01005)-21mm(H12mm)

Max. 55mm( H25mm)(option)

PCB size

50*40-510*460mm(standard)

-740*460mm(option)

Max.-1200*460mm(option)

Conveyor configurations

Standard: 1-2-1

Option: 1-2-2/2-2-2/2-2-1/1-1-1

Factory Option: single conveyor (Jadec Tray 2ea)

Feeder capacity

120ea(8mm)

Power

Voltage: 3 phase AC200/208/220/240/380/415 V ±10%

Air consumption

50Nl/min

Weight

About 1800kg

External dimension

1430*1740*1485mm(L*D*H)
