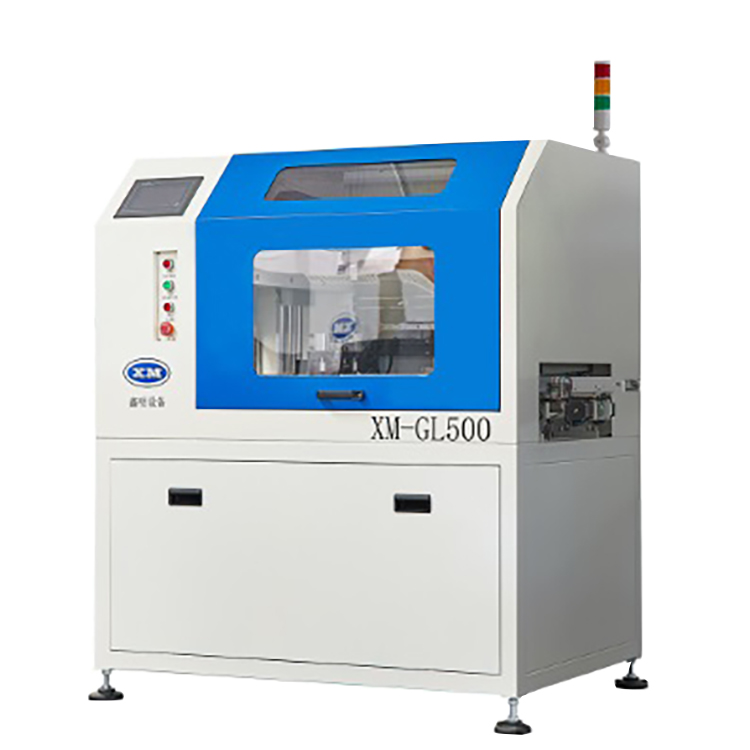

SMT Automatic printing machine XM-GL500

1. Substrate size: 80X100mm-300X450mm (T: 0.6~5mm)
2. Frame size: 470X370mm-700X500mm
3. Transmission direction: from left to right
4. Transmission speed: 100-800mm/sec
5. Scraper speed: 10-150mm/sec

EMAIL

SMT Automatic printing machine XM-GL500


Equipment use:

SMT pre-patch solder paste and red glue printing

Features:

Smart scraper system:

Intelligent programmable settings, independent, direct motor-driven doctor blades, built-in precise pressure control system, regardless of blade type, length or thickness changes.

Steel mesh automatic positioning system:

Realize the printing of various sizes of screen frames, and can realize the rapid replacement of models in the production process. Automatic positioning in Y direction.

Independent cleaning system:

The system provides: dry cleaning, wet cleaning, two cleaning methods, these two methods can be used in any combination, and when the customer does not need automatic cleaning, manual cleaning can be realized under the production interface, thereby reducing cleaning time and improving production. effectiveness.

The new wiping system ensures full contact with the steel mesh, ensuring that the residual solder paste in the mesh is vigorously eliminated, and an effective automatic cleaning function is truly realized.

Efficient drive control system:

The new motion control card is used as the system control, which can realize the modification of the parameters of the machine during the movement process and truly realize the pause function.

Technical indicators:

1. Substrate size: 80X100mm-300X450mm (T: 0.65mm)

2. Frame size: 470X370mm-700X500mm

3. Transmission direction: from left to right

4. Transmission speed: 100-800mm/sec

5. Scraper speed: 10-150mm/sec

6. Transmission height: 900mm±20mm

7. Body size: 1500(L)x900(W) x 1530(H) mm

8. Power supply: AC: 220±10%, 50/60HZ 1KW

9. Air source: 4.5~6 Kgf/c

10. Floating print head

11. Standard stainless steel scraper, unique design, improve the service life of the blade.

12. PCB clamping device

*Magnetic thimble

*PCB side flexible clamping device - to ensure that there will be no bending deformation when the PCB is clamped

13. Fully automatic PCB support lifting platform

* Height adjustment platform suitable for PCB of different thicknesses - to ensure the best contact between PCB and stencil

14. Precision screw guide, automatic width adjustment

15. One-stage guide rail transmission

16. The PCB board relies on the motor and the cylinder to accurately position the edge of the board. The length and width of the PCB board must be within the tolerance of plus or minus 0.1mm.

17. Equipped with built-in automatic plate suction machine

18. Using touch screen control, the operation is simple, convenient and fast

19. The program software is controlled by PCL board, and the standard program runs stably
