Lead-Free 8 Heller solder Reflow Oven 1913MK III SMT Reflow Oven MACHINE

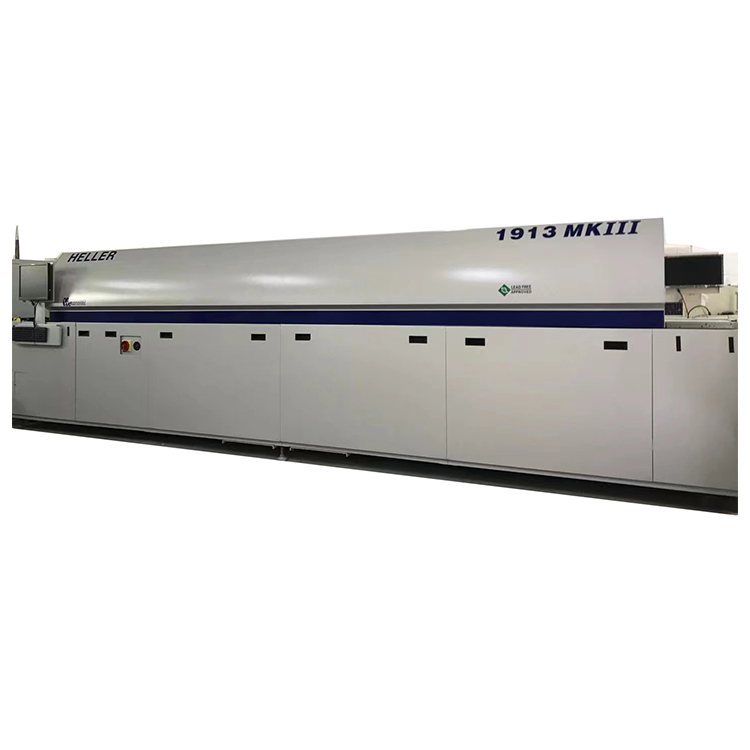

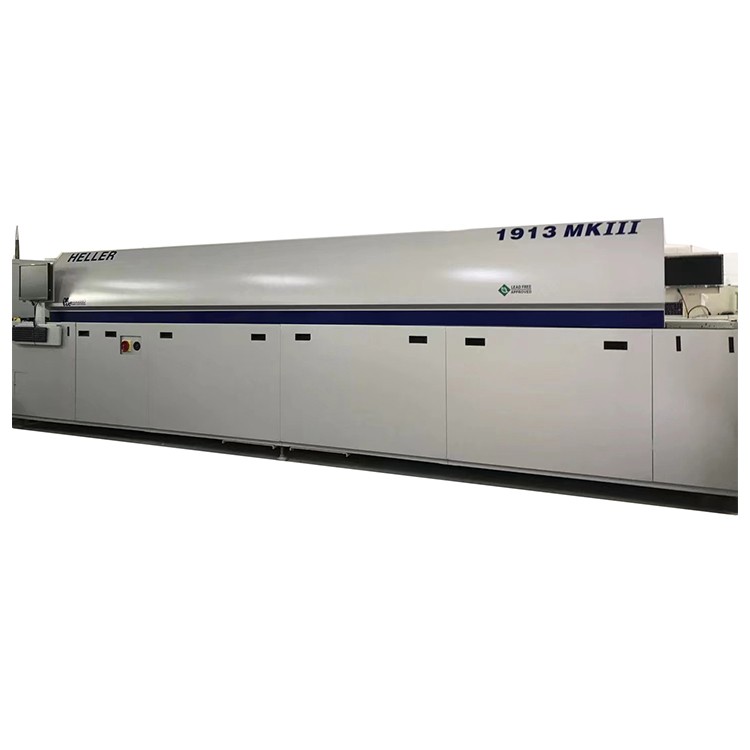

• Heller 1913 MARK III SMT REFLOW OVEN

The ultimate high volume production solutions with belt speeds up to 1.4 m/min to accommodate the fastest pick and place systems delivering the highest levels of repeatability with the lowest delta Ts.

With a high-capacity, 26-inch wide heater module, the 1900 Mark III Series offers unmatched flexibility in board handling. The oven may be fitted with an adjustable single-rail edge hold conveyor/mesh belt combo, to carry even the largest boards or multi-board panels (up to 20 inches wide) through the oven.

Highest Yields and Tight Process Control

• The most efficient heat transfer from extra high volume, high-velocity, heating modules, producing heater module response of less than one second to temperature changes of less than 0.1ºC, thereby maintaining profile integrity for heavy board loads.

• Wide process window for "universal profiling" - allows many different boards to be run on a single temperature profile

• Advanced 5 thermocouple PCB profiling and process parameter logging capability with the capacity to store up to 500 temperature recipes and 500 profile graphs
