Hot air Lead free 12 heating zones Reflow oven F12

Name: SMT Reflow Oven
Heating zones: 12
Heating method: Hot Air
Usage: SMT Assembly line
Product description: Hot air Lead free 12 heating zones Reflow oven, Heating zones: 12, Heating method: Hot Air

EMAIL

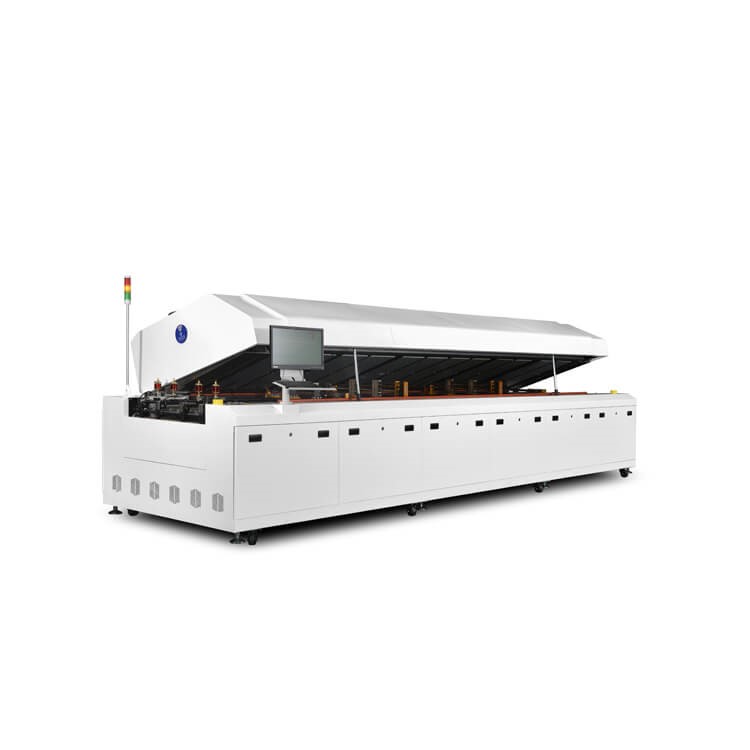

Hot air Lead free 12 heating zones Reflow oven F12



1. Well-known brand computer with Siemens PLC intelligent control system, high precision temperature control in ± 1-2 ℃ (if the computer has gone failure accidentally, it can realize off-line mode and not affecting production) and to ensure that the control system is stable and reliable;

2. Windows XP operating platform with user friendly operation.

3. In order to ensure safety and reliability, hood opening in automatically.

4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and SMEMA connection ensure that guide adjustable wide precision and high service life.

5. Automatic controlled chain lubrication system..

6. PID closed loop control for all heating zones independently, sequential start up to reduce power consumption)

7. Mesh/chain transmission controlled by computer, which can fulfil different kinds of PCB production criteria.

8. Visual & Audio Alarm for abnormal condition.

9. With leakage protector, ensure safety protection for operating personnel and control system.

10. The built-in UPS and automatic delay shutdown system guarantee power failure or overheat won’t harm the PCB and machine.

11. The German ERSA world leading tiny circulation heating mode, and the upper and lower independent air tiny circulation system, temperature uniformity and thermal compensation high efficiency, high efficient supercharged accelerated air duct, greatly improve the circulating hot air flow, heat up temperature quickly (about twenty minutes), thermal compensation for high efficiency, high temperature welding and curing;

12. The upper and lower every temperature zone with independent temperature inductive sensor, real-time monitoring and compensation every temperature zone balance;

13. Have password administration of the operating system, to prevent the irrelevant personnel changes to the process parameters, operation records management traceability process parameters modification, improve the management convenient. Capable for saving user existing parameters and profile printout;

14. Integrated control window, the computer switch, test or printout profile and data transmission are convenient, humanized design. Equipped with three-channel temperature profiling system, may at any time to check soldering objects by the actual temperature profile (without 3rd party profiler);

15. From international standard quick cooling system, magnifying glass type efficient rapid cooling, cooling speed can reach 3.5 ~ 6℃/ SEC, management is very convenient; External chiller unit, ensure that spot crystal effect (Option selected items, the standard configuration for forced natural air cooling).


Specification:



Model

 F12





Heating System

Number of heating zones

Top 12/ bottom 12

Number of cooling zones

2(top 1, bottom 1)

Heating passage

4500mm

Heating style

Hot air

Cooling style

Forced air cooling

Exhaust Volume

10m³/min * 2 vanes









Conveyor System

Max. Width of PCB

400mm

Mesh belt width

450mm

Conveyor Direction

L-R(option: R-L)

Process height

900±20mm

Conveyor type

Mesh and chain

Range of rail width

50-400mm

Conveyor speed

0-2000mm/min

Auto/manual Lubrication

Standard

Fixed track

Front track fixed(option: rear track fixed)

Product clearance

Top and bottom 25mm















Control system

Power supply

5 line 3 phase 380V 50/60HZ

Total power

68KW

Startup power

60KW

Steady consumption

12KW

Ramp up time

20 mins

Temp. setting range

From room temp. To 300℃

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1℃

Temp. deviation on PCB

±2℃

Data storage

Process Data and status storage(80GB)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temperature (overtemp/low temperature)

Board dropped alarm

Tower light:

Amber-warming,Green-normal, Red-abnormal



General

Dimension(L*W*H)

6100*1320*1490mm

Weight

2600kg

Color

Computer gray
