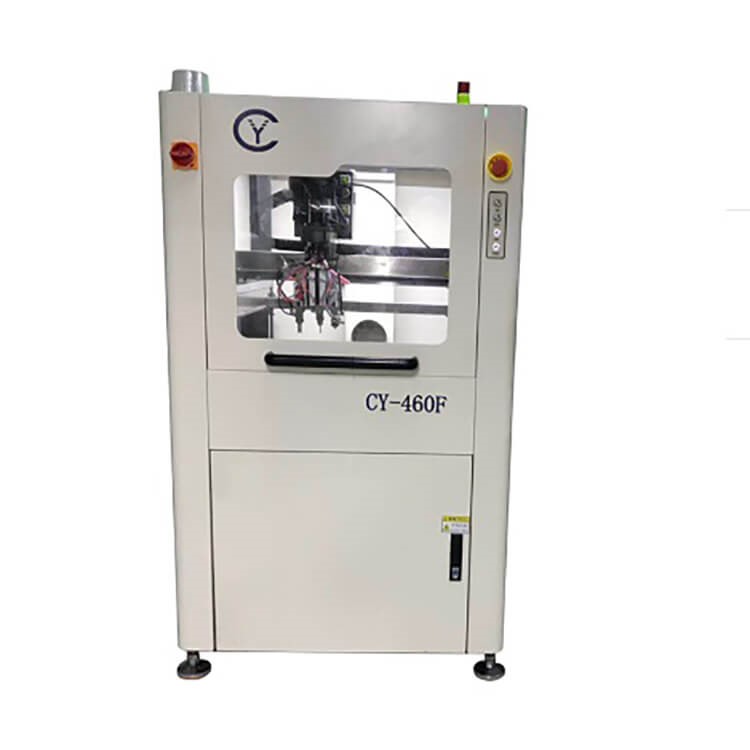

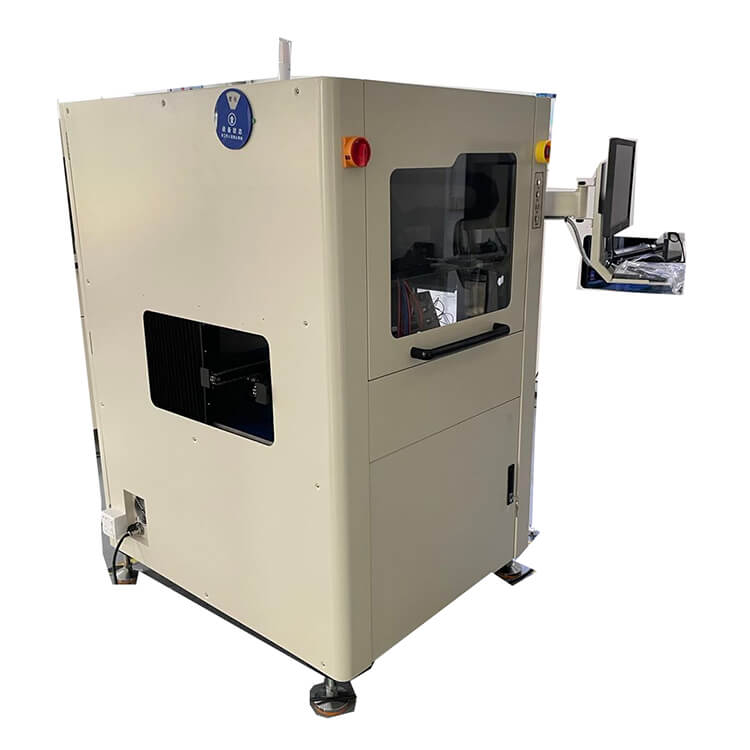

High Precision conformal Coating machine 460F

Applicable Components:0402~5050
Function:PCB Prototype Smt Production Line
Delivery:Within 30 Days
Power Supply:AC220V/50/60Hz

EMAIL

High Precision conformal Coating machine 460F



Features

1. The equipment adopts industrial computer control, windowssa7 operating system;

2. Driven by servo motor + ball screw, with automatic precision calibration function, which can automatically eliminate errors;

3. X, Y, Z, U four-axis movement, the valve body automatically tilts 35° and 360° and rotates arbitrarily, which can achieve spraying without dead spots;

4. The equipment track automatic pressing function, the spraying accuracy is higher, the repeat accuracy is improved, the glue is isolated from contact with the transportation chain, and the maintenance cycle is reduced;

5. It can carry two or more sets of valve bodies at the same time to increase the production capacity and realize the splicing spraying;

6. Equipped with coating valve automatic soaking and automatic spitting device, which can avoid the clogging of the valve nozzle, and the maintenance is convenient and quick;

7. Online track design, which can be connected with other equipment online;

8. Support offline programming and manual teaching programming methods;

9. Configure exhaust gas discharge port

11. Equipped with SMEMA interface to communicate with other devices

12. Optional glue level alarm system

13. Optional CCD visual positioning system

460F Equipment parameters (F series)

Equipment parameters

Frame size

L1060mm*W1200mm*H1700mm

weight

760kg

Control mode

Industrial computer + motion control card

Method of programming

Manual teaching

Run the software

Chengyuan Coating Machine Intelligent Selective Control Software

PCB Transmission height

900±20mm

Transportation speed

Max 300mm/s

Transmission direction

L→RR→L

transfer method

Stainless steel chain + stepper motor

PCB Width range

50-450mm

Width adjustment method

Stepping motor automatically adjusts the width

XY Shaft drive mode

Servo motor + high-precision screw module

XY Maximum operating speed of shaft

1000mm/s

X.Y Axis positioning accuracy

0.01 mm

Z Maximum operating speed of shaft

500mm/s

Z Shaft drive mode

Servo motor + high precision module

Z Axis positioning accuracy

0.01 mm

U Shaft drive mode

Servo motor + synchronous wheel/synchronous belt

U Axis rotation angle

± 180°

Inclination angle of the valve

35°

Valve up and down

Slide cylinder

Number of valves

3 pcs

Valve type

Cone valve / sector valve / dispensing valve each

PCB Board size

MAX W50mm*L460mm

PCB Board component height

MAX 100mm

Coating width

1-30mm

Spray thickness

0.01 mm --5mmDetermined according to glue performance

Tank volume

10L Glue supply pressure tank (optional)

Cleaning function

The equipment comes with cleaning function

Lighting part

The equipment comes with white light and purple light

power supply

AC220V

Gas source

≥0.4MP

Total power

2.5KW

Automatic cleaning device

Standard

Barcode scanning function

Optional

CCD Visual positioning

Optional
