Dimension L1060mm*W1200mm*H1700mm
Weight 800kg
Control mode IPC + motion control card
Programm method Manual teaching
Software CY coating smart selective control
Conveyor height 900±20mm
Conveyor speed Max 300mm/s

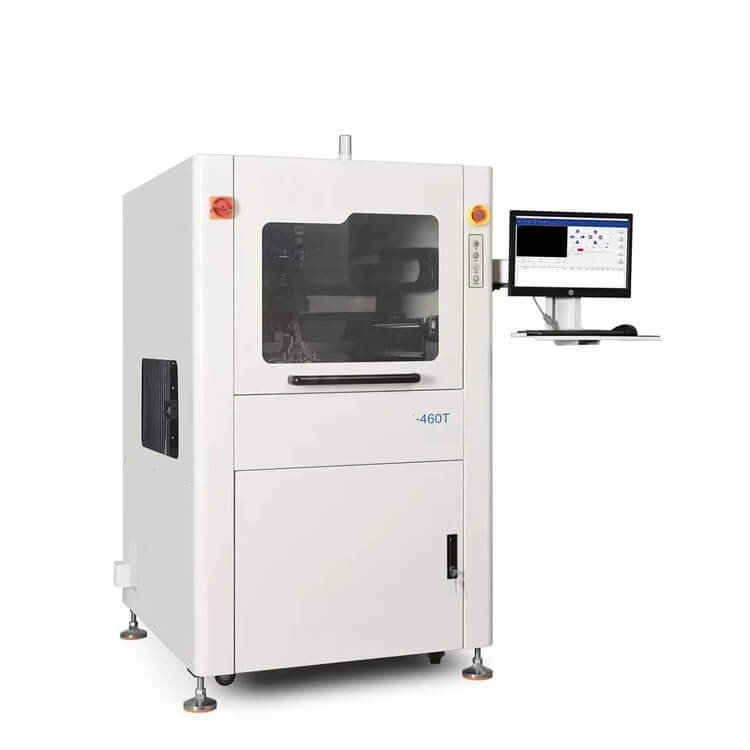

SMT PCB Three-axles automatic selective conformal coating machine
Features
1. The equipment adopts industrial computer control, windowssa7 operating system;
2. Driven by servo motor + ball screw, with automatic precision calibration function, which can automatically eliminate errors;
X, Y, Z three-axis motion
3. The equipment track automatic pressing function, the spraying accuracy is higher, the repeat accuracy is improved, the glue is isolated from contact with the transportation chain, and the maintenance cycle is reduced;
4. It can carry two or more sets of valve bodies at the same time to increase production capacity and realize splicing spraying;
5. Equipped with coating valve automatic soaking and automatic spitting device, which can avoid the clogging of the valve mouth, and the maintenance is convenient and quick;
6. Online track design, which can be connected with other equipment online;
7. Support offline programming and manual teaching programming methods;
8. Configure exhaust gas discharge port
9. Equipped with SMEMA interface to communicate with other devices
10. Optional glue level alarm system
11. Optional CCD visual positioning system
CY-460T Equipment parameters (T series)
Frame size | L1060mm*W1200mm*H1700mm |
Weight | 760kg |
Method of control | Industrial computer + motion control card |
Programmatically | Manual teaching |
Run the software | Chengyuan Coating Machine Intelligent Selective Control Software |
PCB Transmission height | 900±20mm |
Transportation speed | Max 300mm/s |
Transmission direction | Left → right |
transfer method | Stainless steel chain + stepper motor |
PCB Width range | 50-450mm |
Method of width | Stepping motor automatically adjusts the width |
X、Y Shaft drive mode | Servo motor + high-precision screw module |
X、Y Maximum operating speed of shaft | 1000mm/s |
X.Y Axis positioning accuracy | 0.02 mm |
Z Maximum operating speed of shaft | 500mm/s |
Z Shaft drive | Servo motor + high-precision screw module |
Z Axis positioning accuracy | 0.02 mm |
Valve up and down | Slide cylinder |
Number of valves | 2 pcs |
Valve type | Cone valve/needle atomization valve |
PCB Board size | MAX W50mm*L460mm |
PCB Board component height | MAX 100mm |
Coating width | 1-30mm（According to the type of valve） |
Tank volume | 10L Glue supply pressure tank |
Cleaning bucket | 500mL |
Cleaning function | The equipment comes with cleaning function |
Lighting part | The equipment comes with white light and purple light |
power supply | AC220V |
Gas source | ≥0.4MP |
Total power | 2.5KW |
Automatic cleaning device | Standard |
Barcode scanning function | Optional |
CCD Visual positioning | Optional |
