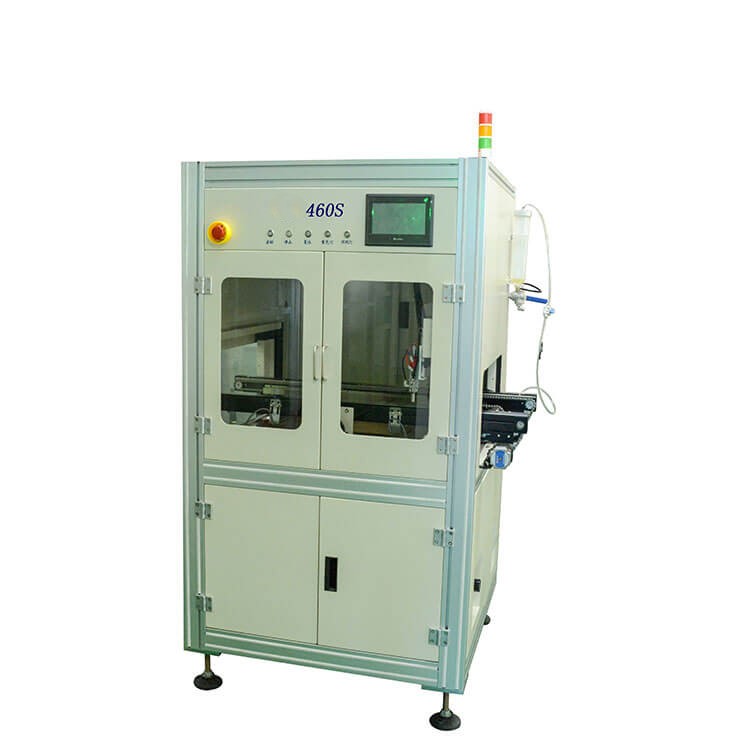

Full board PCBA Conformal Coating Machine 460S

Transportation speed 1000mm/min
Transmission direction Left → right
transfer method Stainless steel chain + stepper
PCB Width range 50-450mm
Y Shaft drive mode Servo motor + synchronous belt

EMAIL

Full board PCBA Conformal Coating Machine 460S


Features:

1. Driven by PLC+servo motor+transmission belt, the accuracy is up to 0.04mm;

2. It is equipped with 1 glue valve as standard, and the spraying is simple and reliable;

3. External 500CC and 10L (optional) glue supply barrel, constant and flexible glue supply;

4. Comes with cleaning function, convenient and quick maintenance;

5. Equipment automatic UV detection function

6. New online barrier-free rail transportation + automatic glue isolation function;

7. Low pressure atomization, neat boundary, reduce pollution;

8. Support visual programming and manual trial teaching function;

CY-460S Technical Parameters

Device parameters

Frame size L*W*H

L1130mm*W960mm*H1650mm

Weight

480kg

Operation method

PLC+touch screen

Programmatically

Manual teaching

Running program storage number

Above 1000 pcs

PCB Transmission height

900±20mm

Transportation speed

1000mm/min

Transmission direction

Left → right

transfer method

Stainless steel chain + stepper motor

PCB Width range

50-450mm

Width adjustment method

Manual width adjustment

Y Shaft drive mode

Servo motor + synchronous belt

Y Maximum operating speed of shaft

1000mm/s

Y Axis positioning accuracy

0.04 mm

Valve up and down

Slide cylinder

Number of valves

1 pcs

Valve type

Cone valve

PCB board size

MAX W50mm*L460mm

PCB Board component height

MAX 50mm

Coating width

1-30mm

Coating thickness

0.01mm-5mm(Determined according to glue performance)

Tank volume

10L Glue supply pressure tank

Cleaning bucket

500mL

Cleaning function

The equipment comes with cleaning function

Lighting part

The equipment comes with white light and purple light

power supply

AC220V

Gas source

≥0.4MP

Total power

1 KW
