Applicable Components: 0603
Board size:330×250mm
Feeder inputs:80
placement capacity:33,000CPH
Product description: JUKI FX-1 Pick and Place Machine, Applicable Components: 0603, Board size:330×250mm, Feeder inputs:80, placement capacity:33,000CPH

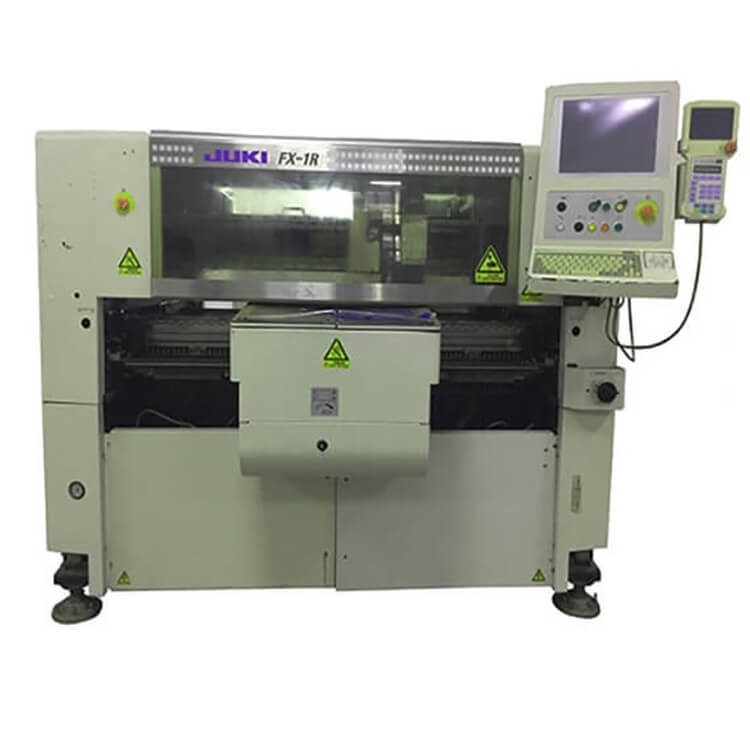

JUKI FX-1 Pick and Place Machine
The High-speed Modular Mounter FX-1R is a traditional modular chip
shooter driven at extreme speeds. Refinements in the drive system
deliver real world improvements in actual throughput.
33,000CPH chip (optimal) / 25,000CPH: chip (IPC 9850)
Two independent multi-nozzle laser heads (8 total nozzles)
from 0603 ?0201? to 20mm square components or 26.5×11mm
0402 (01005) option factory installed.
1 Actual throughput may vary.
2 Please download brochure for details.
Main Features of SMT Pick and Place Machine
Board size | L size (410×360mm) | |
Component size | Laser recognition | 0603 (0201)??20mm or 26.5×11mm*1 |
Placement speed | Chip | 33,000CPH*2 optimum condition? |
25,000CPH IPC9850 | ||
Placement accuracy | Laser recognition | ±0.05mm |
Feeder inputs | Max. 80 on 8mm T/F | |
*10402 (01005) option factory installed.
*2CPH number of components placed for one hour.
