Applicable Components: 03015 chip ~ 25mm square element
Board size:510mm×450mm
Feeder inputs:max 76
placement capacity:75,000CPH
Product description: JUKI RX-7R Modular Pick and Place Machine,Applicable Components: 03015 chip ~ 25mm square element,Board size:50 X 50 ～ 510mm×450mm, Feeder inputs:max 76,placement capacity:75,000CPH

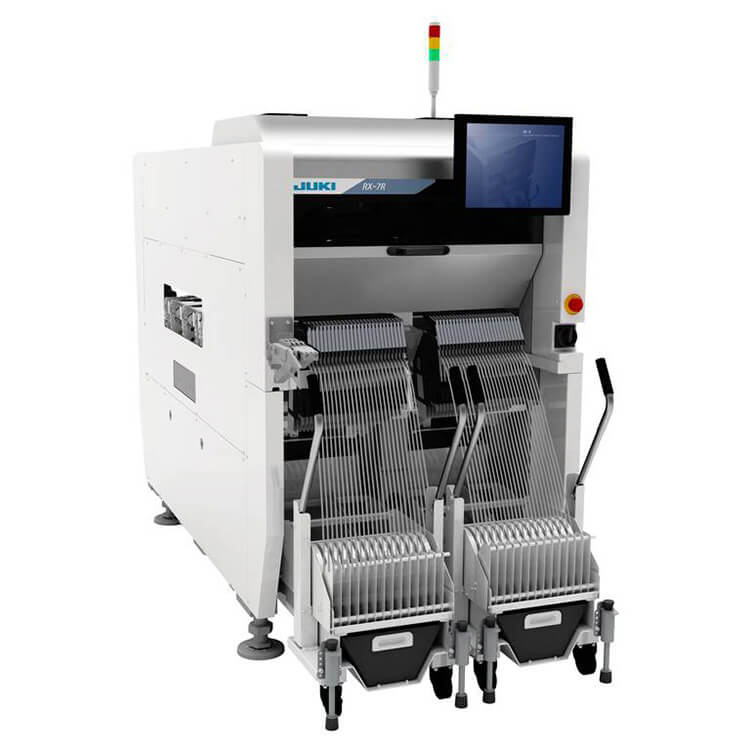

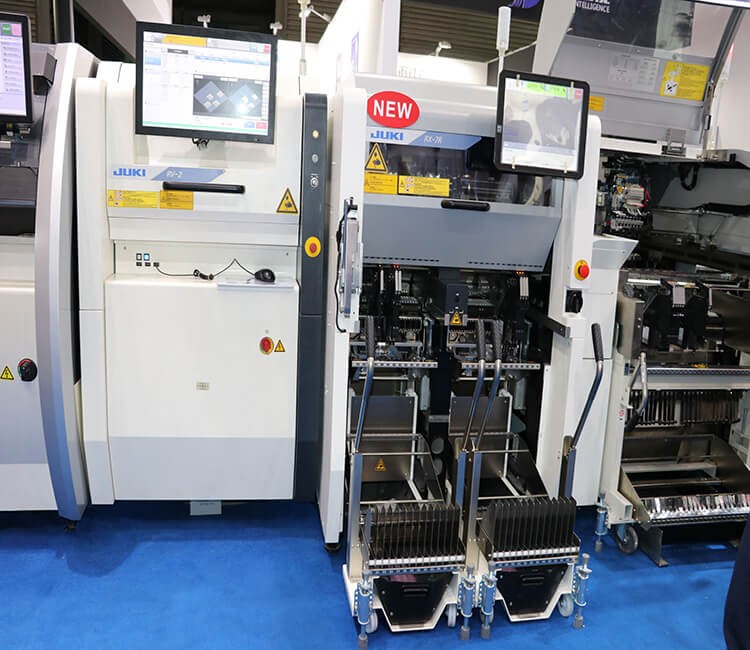

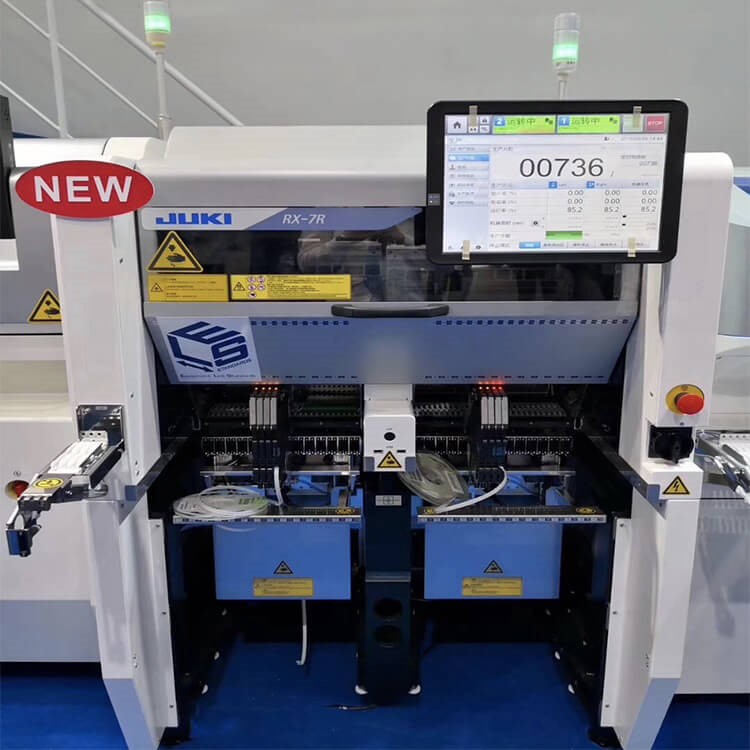

JUKI RX-7R SMT Pick and Place Machine
Component placement speed (optimal conditions): Chip components 75,000 CPH
Element size: 03015 chip ~ 25mm square element
P16 Rotary head enables high-speed, high-density placement of extremely small components
P8 placement head enables high-speed, high-precision placement of small and medium-sized general-purpose components
Space-saving design with a width of 998mm
Supports dual-track production
By combining the placement head, the optimal production line can be constructed according to the production variety.
High production performance achieved by the unique planetary placement head and parallel dual placement head structure
Compatible with small IC components with 03015 chip to 25mm
| High -Speed Compact Modular Mounter RX-7R | ||||
| (P16S×P16S head) | (P16S×P8 head) | (P8×P8 head) | ||
| Board size | Single lane conveyer | 50×50~510mm×450mm | ||
| Single lane conveyer Single lane mode | 50×50~510mm×450mm | |||
| Single lane conveyer Dual lane mode | 50×50~510mm×250mm | |||
| Component height | 3mm | 3mm(P16S head) | 10.5mm | |
| 10.5mm(P8 head) | ||||
| Component size | 03015~5mm | 03015~5mm(P16S head) | 0603~25mm | |
| 0603~25mm(P8 head) | ||||
| Placement speed(Optimum) | Chip | 75,000 CPH | 54,900 CPH | 34,800 CPH |
| IC | - | 6,400 CPH | 12,800 CPH | |
| Placement accuracy | Chip | ±0.04mm(Cpk≥1) | ||
| IC | - | ±0.04mm | ||
| Feeder capacity | Up to 56 | |||
| Power supply | 3 phase AC200V,220V-430V | |||
| Apparent power | 2.3kVA | |||
| Operating air pressure | 0.5±0.05MPa | |||
| Air consumption (standard) | 20L/ANR(during normal operation) | |||
| Machine dimensions (W x D x H) | 998×1,895×1,530mm | 998×1,895×1,530mm | ||
| Mass (approximately) | about 1,820kg | |||
