JUKI RX-8 Pick and Place Machine

Max PCB: 510mm×450mmPlacing Speed:100,000CPHWeight: Around 1,810kgDimension:998mm×1,895mm×1,530mmProduct description: JUKI RX-8 Pick and Place Machine, Max PCB: 510mm×450mm, Placing Speed:100,000CPH, Weight: Around 1,810kg, Dimension:998mm×1,895mm×1,530mm

EMAIL

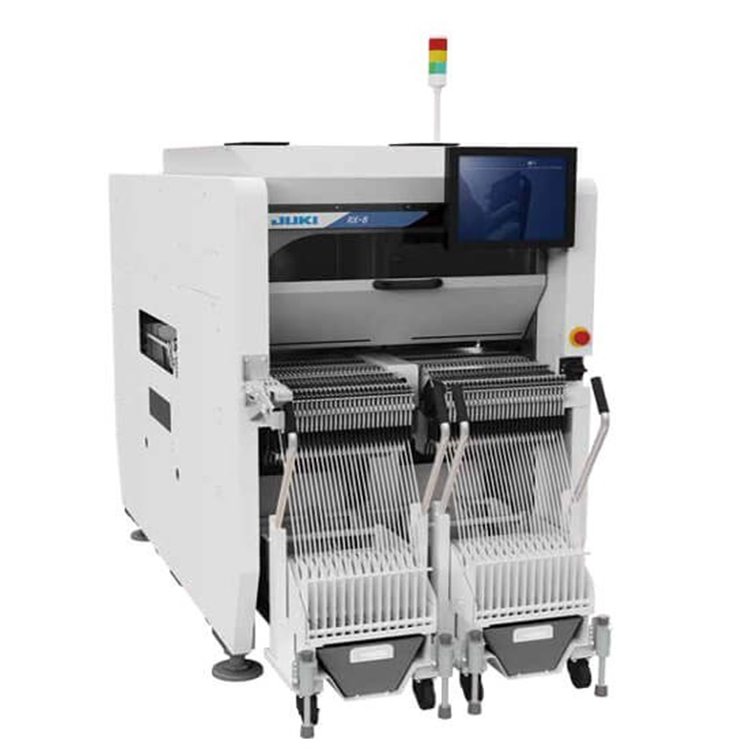

JUKI RX-8 Pick and Place Machine


juki rx-8.jpg

High-speed placements of up to 100,000 CPH.

Best-in-class placement rate per square meter (sq ft)

New P20 placement head achieves speeds of up to 100,00CPH. At only 998mm wide, the RX-8 provides exceptional productivity in a compact footprint. Best in class placement per square meter(square foot)


*¹optimum conditions  Market survey data

Integrates seamlessly with the production environment
Efficient production is made possible via upstream data sharing to support bad mark propagation, component supply management while showing real-time status of the production line.

Communicates and shares information with other equipment
Bad mark information of the circuit detected by the inspection machine or a machine upstream of the line can be propagated to the JUKI RX-8 in order to reduce the bad mark recognition times and improve productivity.


Component Management with Auto replenishment
Top production efficiency is achieved by continuous monitoring of component consumption and communication with the Automated Component Storage and Transport System. When the placement system detects a low-level warning, it automatically communicates that information to the storage system, which immediately pulls an additional reel of that component,loads it on an AlV to transport the reel to the line to arrive before the existing reel has run out. This eliminates downtime during production due to component run out.

It is very simple to generate PCB programming data
Using visual aids of the board layout makes programming intuitive and simple.

Trace Monitor tracks quality throughout the production process
JUKI RX-8 Trace Monitor provides real time status of the placement head during production. It tracks mis-picks, recognition errors and records which feeders and nozzles those errors came from. A dashboard displays all the key performance indicators making it easy to view the production efficiency and what is needed to improve the process.

Low impact placement for flexible circuits
Low Impact feature allows separately adjusting the down and up speed of the nozzle during placement. This minimizes the load on the part and on the board during placement. This is optimal for placing very small parts that require a lot of accuracy.

The P20 high-precision planet head is ideal for high speed picking and placing from a single reel.
The P20 is designed for placement of ultra-small chips and small IC's. It is ideal for high-density and high-accuracy placements of LED edge lights.

State-of-the-art centering and inspection vision system
The vision system detects presence and absence, inverted chips, and tombstoning. It also automatically corrects the pick position of every part, increasing the pick rate. This system makes it ideal for placing very small parts.

New high accuracy camera for inspection and centering
New xoaxial lighting technology gets clearer images and better, more accurate inspection data.


JUKI High Speed RX-8 Pick and Place Machine

Board Size

50×50510mm*¹ *²×450mm

Component Height

3mm

Component size

0201*³5mm

Placement Speed (optimum)

100,000CPH

Placement Accuracy

±0.04mm (Cpk ≧1)

Feeder Supply

Up to 5*⁴

Power Supply

3Phase AC200V220V430V *⁵

Apparent Power

2.1kVA

Operating air Power

0.5±0.05MPa

Air consumptionstandard)

20L/min ANR (during normal operation)

Machine DimensionsW×D×H*

998mm×1,895mm×1,530mm

Machine Weight

1,810kgwith fixed bank/ 1,760kgwith bank changing

*1 BOC, Bad Mark, and 2D barcode can be read only if board is from 50mm to 350mm

*2 In long board mode (two boards can be produced simultaneously up to 420mm long ).

*3 Please contact FLASON SMT for details

*4 When use RF08AS Feeder

*5 220V-430V requires a separate transformer.

*6 Depth D does not include the monitor, and height H does not include the signal light when conveyor height is 900mm.

Options

Conveyor System

Support Pin/Support plate

Other

Dedicated Nozzle / Spare Nozzle cartridge / Connecting Cable/ Earth leakage circuit breaker / Work lighting

Available Feeders

Feeder bank exchange trolley / Electric tape feeder /FixedRFbank / Feeder setup station tape splicing jig /Feeder adjustment jig / External power supply for the electric feeder banks

Software

JaNets*

User definition/Facility definition / Component DB / Creating Production programs / Line optimization / Line monitoring / CAD conversion / Cluster optimization

IFS-NX

Prevents loading parts in the wrong location / Tracks remaining quantity of parts / External setup verification/Random Feeder setup
