Place Speed: 17,500CPH
Max PCB:410×360mm
Component Size: 0603～33.5mm
weight: 1800KG
Product description: JUKI JM-10 Multi Task Platform Hybrid Placement Machine, Place Speed: 17,500CPH, Max PCB:410×360mm, Component Size: 0603～33.5mm, weight: 1800KG, Dimension:1500*1500mm

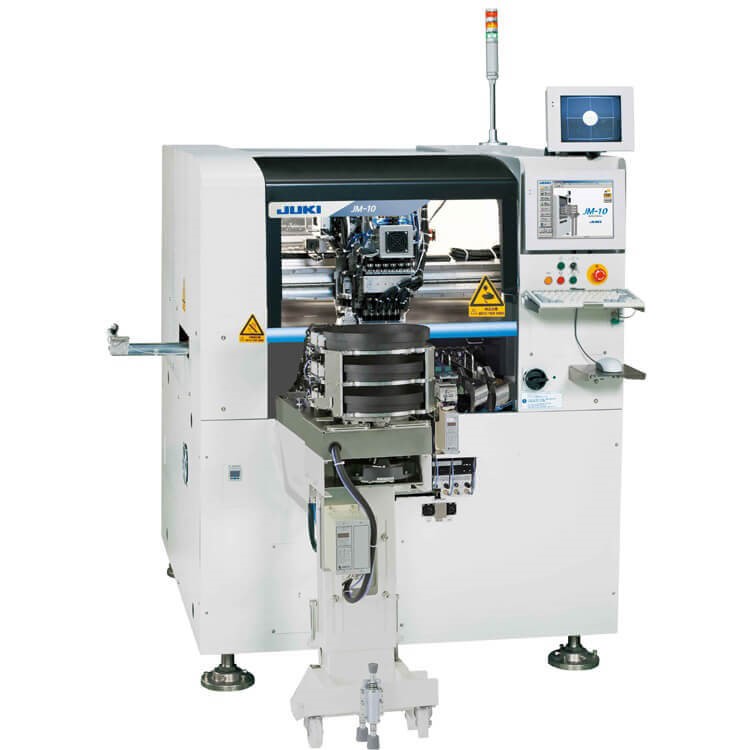

JUKI JM-10 Hybrid Placement Machine
Laser sensor for lead detection
Wide variety of feeder types
( Feeders can be customized for specific components )
Lead 90 degree bend function
Lead Correction Unit
Multi Task Platform JM-10 | ||||
Ｍ-size board | L-size board | |||
Board Size | Single Clamp | 410×250mm | 410×360mm | |
Double Clamp | - | |||
PCB Weight | max.2kg | |||
Component Height | 28mm | ○ | ||
55mm | - | |||
Component Size | Laser recognition | 0603～33.5mm | ||
Vision recognition*1 | 54mm view camera | 3mm～33.5mm | ||
27mm view camera | 1005～24mm | |||
Insertion Speed | Vacuum (JUKI Condition）*2 | ０.８ sec/parts*3 | ||
Placement Speed(SMT) | Chip (Optimal） | 17,500CPH*3 | ||
IC | 4,100CPH*3 | |||
Placement Accuracy(SMT) | Laser recognition | ±0.05mm（3σ） | ||
Vision recognition*1 | ±0.04mm | |||
