Speed:42000CPH
PCB Size : 650×560㎜
Feeder input:112pcs
Weight: 1850KG
Product description: JUKI RS-1XL Pick and Place Machine, Speed:42000CPH, PCB Size : 650×560㎜, Feeder input:112pcs, Weight: 1850KG

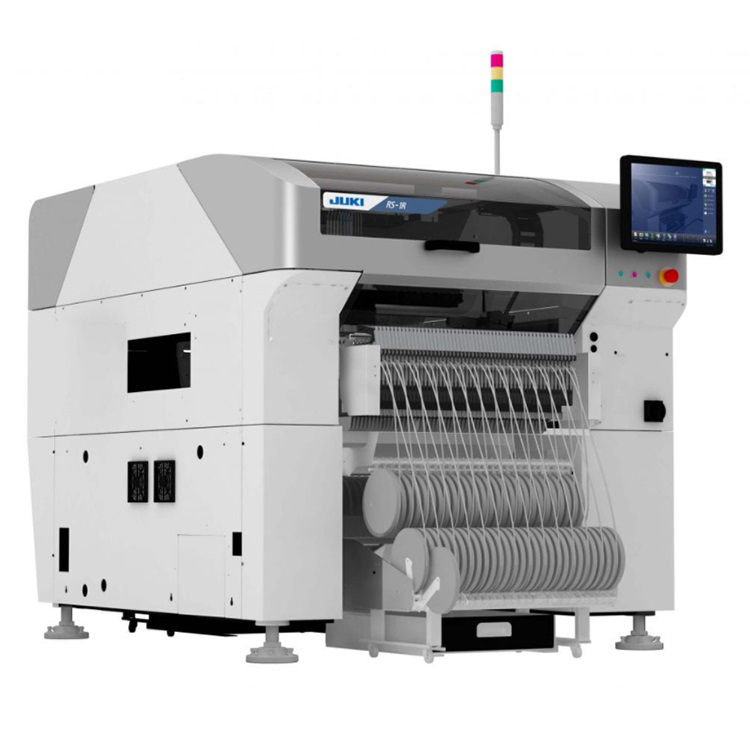

JUKI RS-1XL Pick and Place Machine
Speed and Flexibility for High Quality Production of any PCB
With maximum speed up to 42,000CPH (Optimum) and 29,000CPH (IPC9850), the RS-1XL is designed for maximum throughput. The RS-1XL supports components from 0201 metric (008004") up to 74mm square and 50mm x 150mm rectangular parts for maximum flexibility.
Class Leading Speed up to 29,000CPH (IPC 9850)
New Disruptive Technology
Wide Component Range
Highly Adaptable Design
RS1-XL Model Changes (vs. the RS1 model):
-- Board size is now 650 × 560mm
-- Air consumption is now 200L/min
-- Machine dimensions are now 2,109 × 2,000 × 1,440mm
-- Approx. mass is now 1,850kg
Specification of JUKI RS-1XL
Fast Smart Modular SMT Mounter | |
| Model | JUKI RS-1XL |
| Boars size | 50×50㎜~650×560㎜ |
| Component height | 25mm |
| Component size | Shooter, JUKI Placement, JUKI RS-1XL, JUKI Modular Mounter 0201※～□74㎜/150×50㎜ |
| Placement speed | Optimum: 42,000CPH; IPC9850:29,000CPH |
| Placement accuracy | ±0.035mm (Cpk≧1) |
| Feeder inputs | max.112（Using RF feeders） |
