Solder bar type
Lead-free
Total power
Max.22kw
Solder pot power
14kw
Normal running power
Approx.3-5kw
Solder pot capacity
Approx.480kg
Air supply
4~7KG/CM2

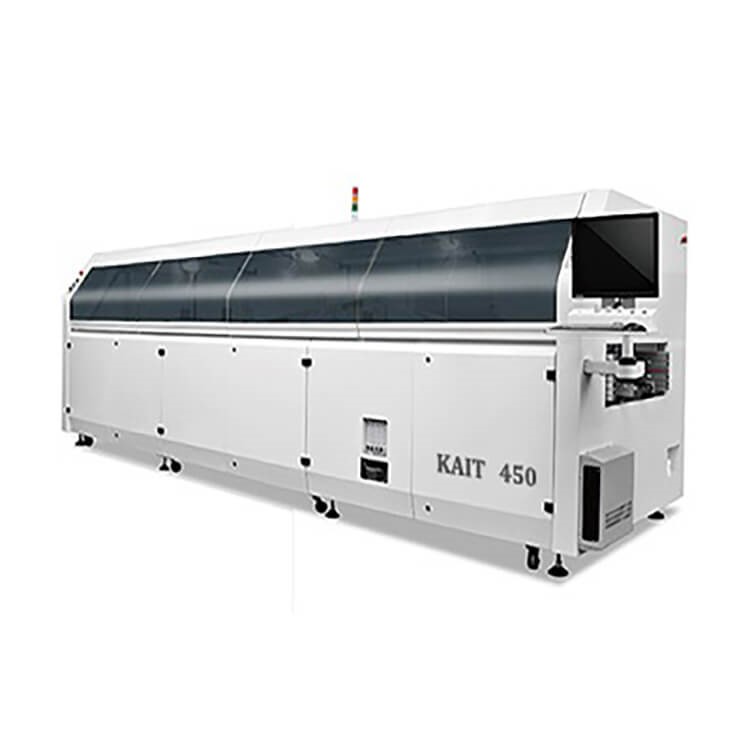

Nitrogen Wave Soldering Machine KTN-450
Infrared heating method, by this method, the air won't flow, It can keep high level nitrogen level in soldering part. easy to reach oxygen less than 30-50 PPM.
High nitrogen level make the solder clean and very few dross nearly no, and for the PCB surface it's very clean, no dross on the surface, so PCB no need cleaning ,
no need cleaning machine, save many cost for cleaning. High nitrogen level also make the solder more few empty holes inside the solder.
0-1800mm／Min | Solder pot temp. accuracy | ±1℃ | |
Angle | 3~7 degree | Finger types | Strong titanium finger /customized |
Component height limit | Max.100mm | Solder bar adding way | Manually |
Wave height range | 0~18mm keep steady | Temp. control | P.I.D +SSR |
Wave quantity | 2 | Machine control | PLC+PC |
Preheating length | 1800mm | Width adjust | Manually/motorized |
Preheating zone | 4 zones | Flux adding way | Automatic |
Conveyor direction | Left to right | Flux flow rate | 10~100ml/min |
Preheat power | 10KW | Spray method | Step motor+ ST-6 nozzle |
Preheat temp. | Room temp. to 250℃ (adjustable) | Flux recycle | Tray to collect |
Heating model | Infrare Tube | Electricity | 3P 5 wires 380V/3P 220V |
Solder bar type | Lead-free | Total power | Max.22kw |
Solder pot power | 14kw | Normal running power | Approx.3-5kw |
Solder pot capacity | Approx.480kg | Air supply | 4~7KG/CM2 |
Solder pot material | Cast iron | Dimension | 5500*1600*1730mm |
Weight | Approx.2500kg | ||
