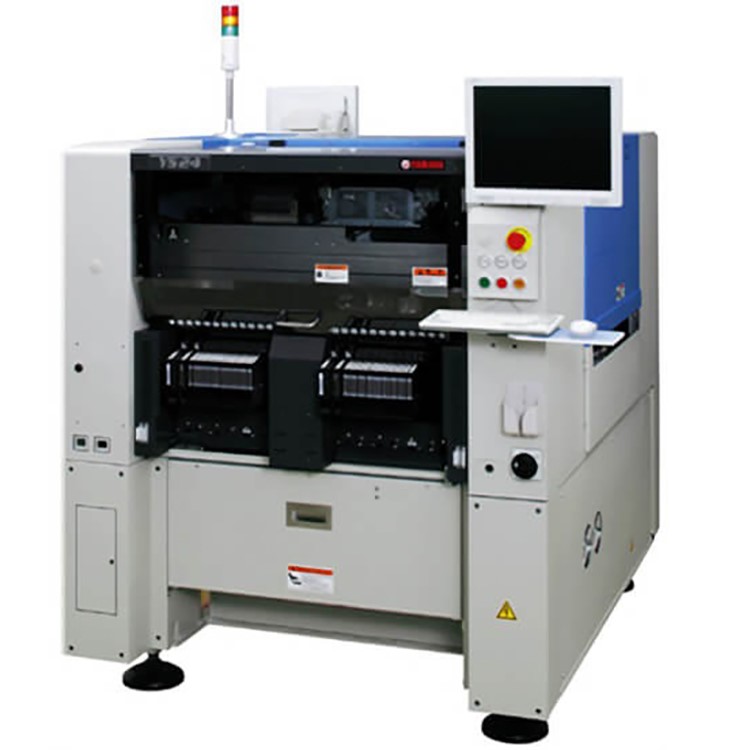

SMT Line Machines YAMAHA YS24

Applicable PCB

L50xW50mm –to L700xW460mm

Mounting accuracy

+/-0.05mm ( + 3sigma), +/-0.03mm (3sigma)

Speed

72,000CPH (0.05 sec./CHIP: Optimum conditions established by Yamaha Motor)

Applicable components

0402 to 32x32mm MAX (Height 6.5mm or less)

Component Types

120 types (Max./8mm wide tape reel conversion)

Power supply

Three phase AC 200/208/220/240/380/400/416 V +/-10%

Air supply source

0.45MPa

External dimension

L1,254x W1,687x H1,445mm (Excluding protrusions)

Weight

Approx. 1,700kg
