Dimensions 500*W*1050mm
PCB size 50*50-330*250mm
PCB thickness Min.0.6mm

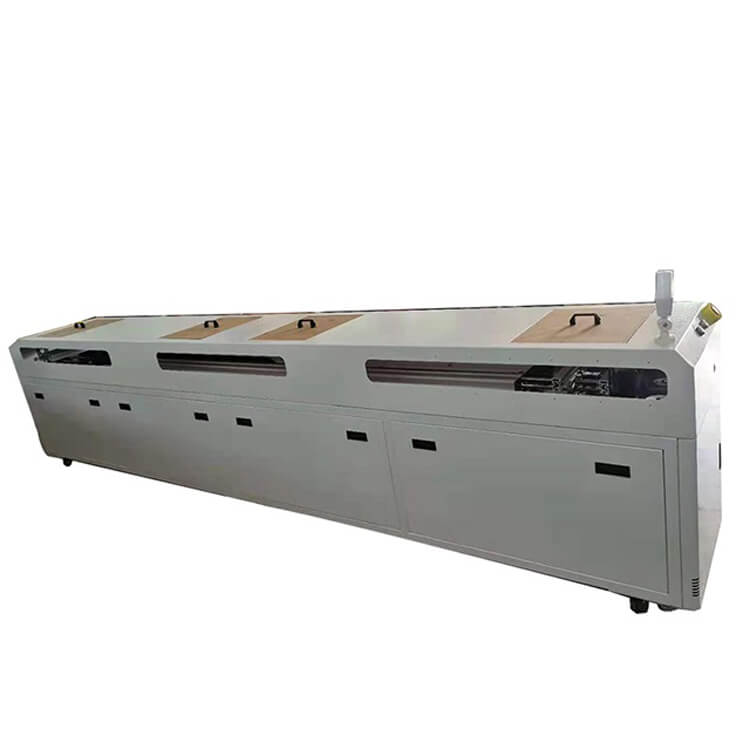

SMT PCB Translation Shuttle Conveyor
1.PLC+LED touch screen control, easy to operate.
2.Full closed design ensures safety level of operation.
3.The cover can be opened to facilitate machine maintenance.
4.Smooth and precise width adjustment (leadscrew).
5.Smooth and accurate movement (stepping motor).
6.Minimize the transmission gap between conveyors.
7.With SMEMA signal.
Product Name | High Quality Translation PCB Shuttle Conveyor for LED Production Line from shenzhen |
Model | OB-SC618 |
Dimensions | 500*W*1050mm |
PCB size | 50*50-330*250mm |
PCB thickness | Min.0.6mm |
Belt type | Round belt or flat belt (optional) |
Power/power consumption | AC 1P 110V/220V 50/60HZ |
Conveyor height | 900±20mm |
Conveyor direction | L-R or R-L (optional) |
Weight | Approx.140Kgs |
