SMT PCB Turning Conveyor

SMT PCB Turning Conveyor

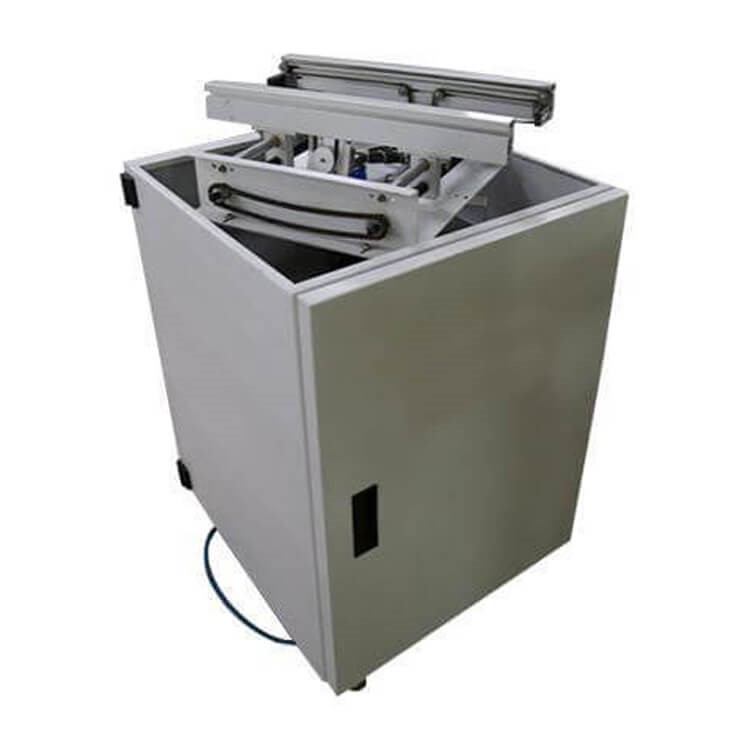

SMT PCB Turning Conveyor, is designed to turn boards 90° or 180° in L-shaped or T-shaped production lines, providing extreme flexibility for the factory floorplan. dealing with PCB:530 x 460 mm (20.87" x 18.11"), features three openings and a conveyor turntable to reorient PCBs to meet process or floorplan requirements.

Turning Conveyor openings in the left, right, or rear of the unit, allowing it to be oriented in the production line as the manufacturing process and equipment layout dictate.

A pass-through function provides flexibility for diverting NG boards to another section of the line, such as an inspection conveyor or magazine unloader, while allowing OK boards to continue to the next process.

1. The top safety caps of PCB turn conveyor can be opened for machine hardware maintenance.
2. It is equipped with intelligent touch screen control interface which is quite convenient.
3. The turning speed of PCB board is adjustable to avoid skid.
4. It is equipped with stable width adjustment device (manual screw control).
5. It has small floor space.

6. It is equipped with compatible SMEMA port.
