SMT PCB conveyor Electronic circuit board transmission device

Overboard size PCB board size 50*450mm
Transmission direction Fixed in front of the track, left→right
Transmission height 900±20mm
Transmission motor 15W Speed control motor

EMAIL

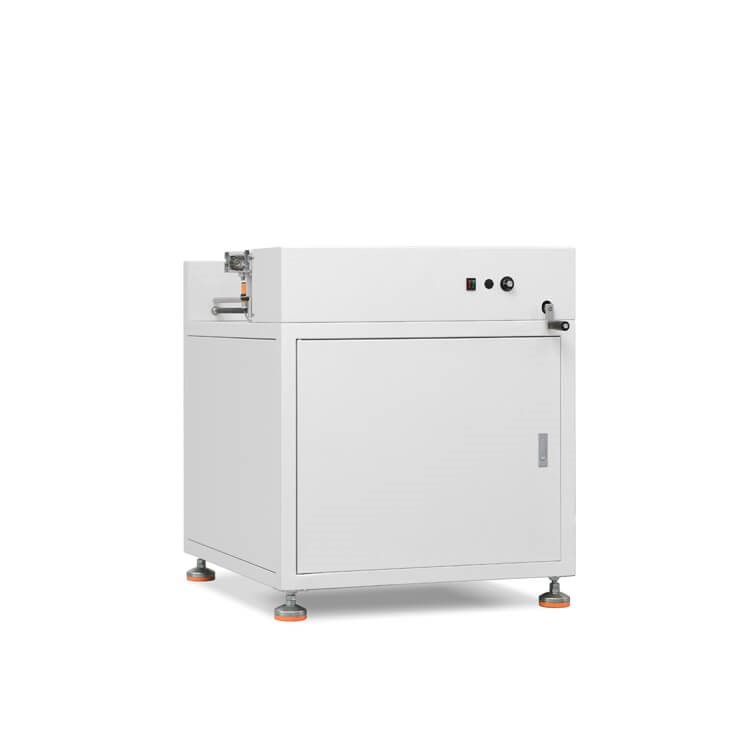

SMT PCB conveyor Electronic circuit board transmission device



Features:

The use of high-grade aluminum alloy guide rails and white paint overall support, beautiful and generous, easy to observe and maintain, very convenient

There are optional functions such as return line, manual/electric amplitude modulation, etc., suitable for different production requirements;

The position of entering and exiting the plate is controlled by photoelectric switch, positioning is accurate and stable.

Equipped with equipment interface, which can be connected with coating machine and other automation equipment to realize fully automated process and improve work efficiency.



Technical parameters of inspection table

Model

BCF-350UV

Dimensions

L800*W800*H900mm

Overboard size

PCB board size 50*450mm

Transmission direction

Fixed in front of the track, left→right

Transmission height

900±20mm

Transmission motor

15W Speed control motor

transfer speed

0-3 M/min

Method of control

Control card

using electric

AC220V/50-60HZ(Independent electric box control).

Standard signal

Using standard SMEMA interface, it can be directly connected to other equipment for use.

LED three anti-fluorescence detection system, which can directly observe the spraying effect
