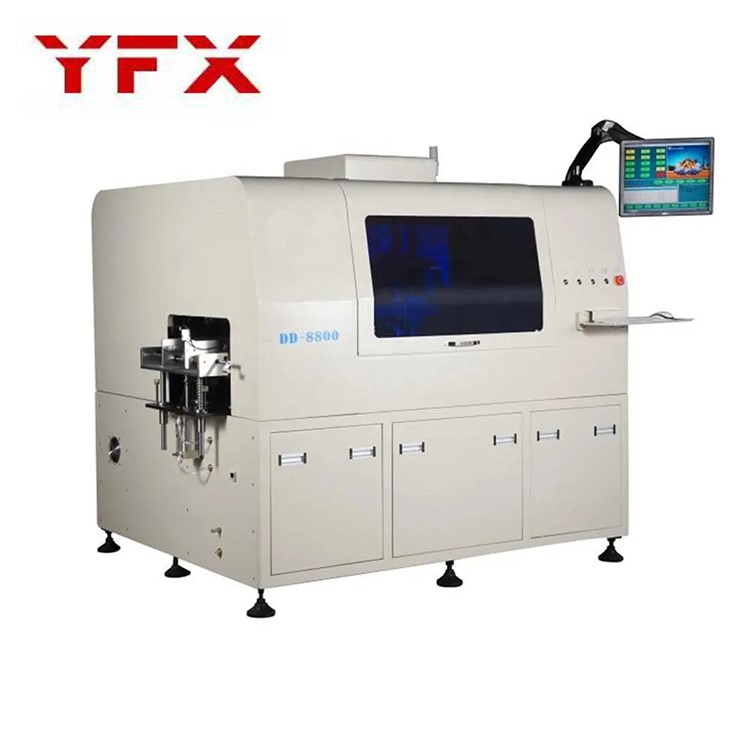

SMT Production line PCBA Automatic vertical plug-in machine DD-8800

SMT Production line PCBA Automatic vertical plug-in machine DD-8800

EMAIL

SMT Production line PCBA Automatic vertical plug-in machine DD-8800


Item Specifications

Plug-in speed 20000/piece

Poor insertion less than 1000PPM

Insertion direction 0—360 degrees in 1 degree increments

Lead span Double pitch 2.5mm/3.5mm/5.0mm/7.5mm/0.0mm

Substrate size 400mm*350mm

Substrate thickness 0.79-2.36mm

Component Specifications Standard height is 22mm, diameter is 13mm, lead diameter is 0.8mm

Component types Vertical tape packaging materials such as capacitors, transistors, triodes, LED lights, key switches, resistors, connectors, coils, potentiometers, fuse holders, and fuse wires.

Component lead clipping length 1.5±0.3mm (short-leg knife), 2.0±0.3mm (long-leg knife)

Component lead bend angle 10-35 degrees (adjustable)



Number of material stations 10 stations/15 stations

Machine size (L*W*H) 1992*1820*1593mm/2000*1820*1593mm

Material station size 300*63*42mm

Machine weight 1500KG

Power supply 220V, AC (single phase) 50/60HZ, 2.0KVA

Use power 1.6KW (energy-saving type)

Use air pressure 0.6--0.8MPA

Air usage 0.3 m3/min

Use ambient temperature 5-25 degrees

Machine noise 60 decibels

Hole correction method Machine vision system, multi-point MARK vision correction

Drive system AC servo, AC motor

Data input method USB interface input (EXCEL file format)

Control system Chinese operation interface (WINDOWS system control platform)

Component density 1MM spacing between component bodies, and the distance between SMD components and holes cannot be less than 3mm

Table operation mode XY axis direction

Circuit board conveying method fully automatic





Compatible Component Spacing Pin Spacing: (Optional)

2.5mm;

2.5/5.0mm;

2.5/5.0/3.5mm (3.5 optional inward or outward bending);

2.5/5.0/7.5mm;

5.0/7.5/10.0mm;

2.5/5.0/7.5/10.0mm.

Compared with the advantages and selling points of other equipment with the same standard

The integrated design of the station is more conducive to daily operation and maintenance. It is smaller than the station on the market, improves the continuity of feeding, and avoids manual operation errors and expands personnel operations (non-professionals can also operate easily and skillfully. ) range. Reduce the occurrence of accidents and reduce production costs.

The base is controlled by a servo motor, and the operation is controlled by a computer interface, which improves the accuracy of product production. It reduces the difficulty for maintenance personnel to operate and reduces noise pollution.

equipment parameter

1

theoretical velocity

20000 cph/H

2

Poor insertion

less than 1000PPM

3

Insertion direction



The increment of 0 to 360 degrees is 1 degree



4



Lead span

Double pitch 2.5/5.0mm (optional 2.5/3.5/5.0 or 2.5/5.0/7.5/10.0mm)

5

substrate dimension

350mm*280mm

6



Substrate thickness

0.79-2.36mm

7

component specification

Standard height is 21mm, diameter is 10mm, and pin diameter is 0.8mm

8

Component type

Capacitors, transistors, triodes, LED lights, key switches, resistors, connectors, coils, potentiometers, fuse holders, fuse links and other vertical taped packaging materials.

9



Element lead cutting pin length



1.5±0.3mm(Short leg knife),2.0±0.3mm(Long leg knife)
