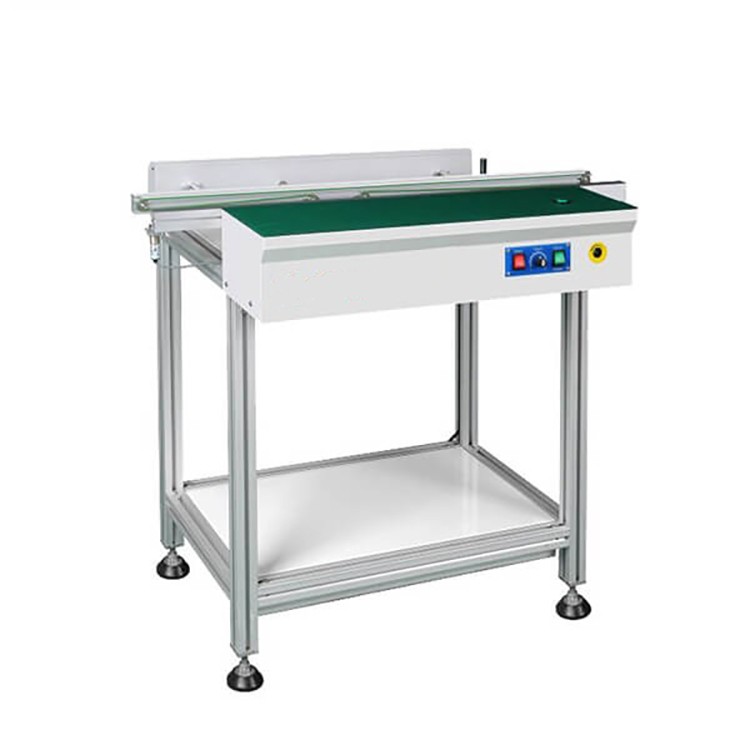

SMT PCB Conveyor 500mm

PCB Conveyor is used in SMT assembly line to transfer the PCB automaticly between SMT equipments. Normally there need PCB conveyor beside these machines: automatic solder paste printer,pick and place machines,SPI, automatic AOI,reflow Ovens

EMAIL

SMT PCB Conveyor 500mm

05 conveyor.jpg

1 Modular design, optional assembly as per client’s requirement.

2 Rugged steel design, improves equipment stability .
3 Smooth stainless steel screw to adjust the width of the rail.
4 Variable speed control.
5 Circuit board testing mode.
6 Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7 Heavier bottom design, not easily shift.
8 Machine length can be customized.
9 Compatible with SMEMA interface.

Specification:

Standard SMT link/inspection Conveyor

Rail Length(mm)

500 mm

600 mm

1000 mm

1200 mm

1500 mm

2000 mm

Dimension (mm)

500*700*950

600*700*950

1000*700*950

1200*700*950

1500*700*950

2000*700*950

PCB Width

50 to 350 mm

PCB Direction

L to R or R to L

Speed

Adjustable

Switch

Foot Switch

Control System

PLC

Lighting

Optional

SOP Rack

Optional

Platform Material

ESD Rubber Mat

Communication

SMEMA for both in & out

Power Supply

1 PH AC 220V 50/60Hz

(Option:110V to 380V)

Weight

70 Kg

75 Kg

95 Kg

105 Kg

125 Kg

150
