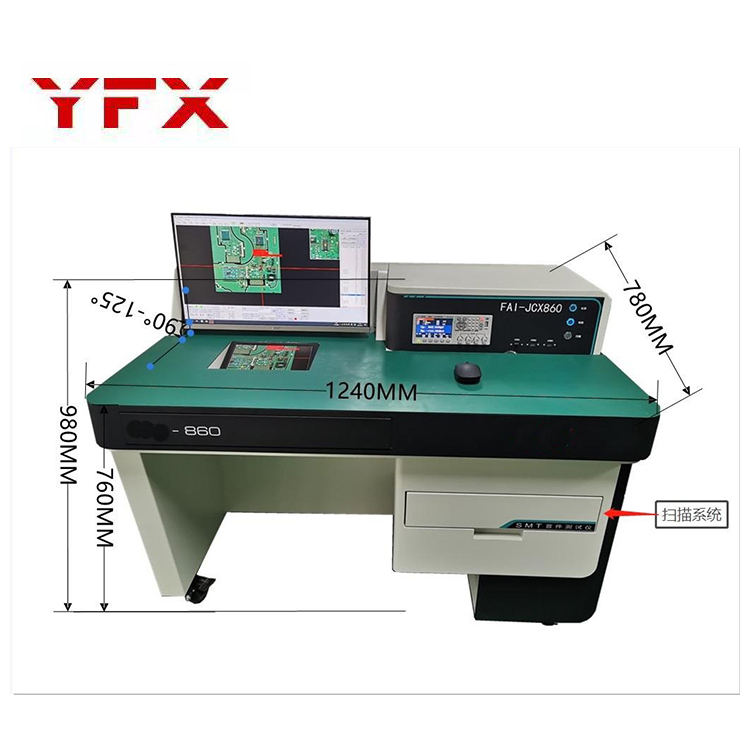

SMT Smart First Article Tester for pcba board

scan range

420mm*320mm Top height 26mm, bottom height 40mm

scanning method

High-definition linear CCD optical scanning

scanning element

CCD toshiba

(TOSHIBA)TCD-2964

scanning light source

The LED adopts three-wavelength (R.G.B) white LED light source technology, which improves the color gamut range compared with ordinary white LEDs, making the captured colors richer and fuller, and at the same time protecting the original manuscript from repeated strong

Color change caused by light scanning.

optical resolution

600-2400dpi 0.01mm/pixel

Silkscreen, Direction, Polarity

Automatic identification of marked components

LDT Function

LDT gear position detection auxiliary LED forward and reverse segment lighting detection

LCR brand

Tonghui

 8603 20Hz-300kHz

Measurement display range

L 0.00001uH-99999H C 0.00001PF-99999uF

R 0.00001Ω-99.999MΩ

Component measuring range

L 100nH-50mH

C 0.1pF-1000uF R 0.1Ω-30MΩ

measurement accuracy

0.05%

Detection method

AI intelligence and OCR automatically extract component pictures and characters

Recognition, automatic judgment of right and wrong (with silk screen components)

detection type

Solder paste board, red plastic board, adhesive tape

Check result shows

PASS/NG Sound and light reminder

test program

Automatic generation (via BOM and CAD location drawing) in ≤3 minutes

Device query

Automatically display and search for undetected devices

judgement result

Automatically switch the test gear and automatically determine the result

Test trace

The test data can be recorded in the whole process, the form report can be automatically output, and the

For retroactive basis

MES docking function

With an independent MES interface, it can be docked with MES for free

program storage

Test program storage, direct call, without repeated programming

software language

Chinese/English/Japanese

programmatically

Offline programming (import BOM and drawing coordinates, support double-sided coordinate import, and can choose one side for measurement (recognizable/compatible with the market)

different BOM specifications)

Warranty

1 year
