Automatic 2.4 Meter DIP insertion line

Automatic 2.4 Meter DIP insertion line

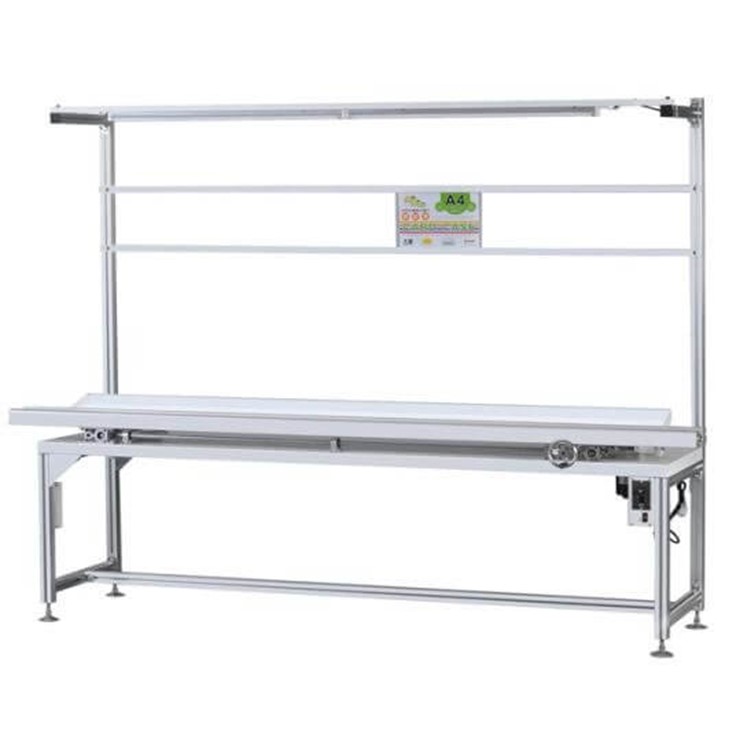

this dip line/dip assembly line is to insert the components on PCB or assembly CFL .

1.Working place arranged at one side beside the conveyor.

2.Motor running ,Chain moving .

3.Our normal length is 2.4M ,one working place per 1 meter,totally 3 working places

4.Line width is about 600mm ,total height about 1800mm ,working height 740mm.

5.Materials :aluminum .

6.Suitable PCB width 35-300mm width can adjustable.

7.fix 40 W fluorescent tube per working place ,totally 3 tubes.

8.each working place install component box fixtures /boards .

9.Moving method ; Driven by motor ,PLC control ,speed 0.3-3m/min adjustable.

10. Total Power : 60W AC220V/1phase/50HZ60w

11.By connected the line to wave soldering machine with conveyer , it will automatically go to the next step for soldering .

12.Speed: 0.2-2m/min

13.Dimension:240x60x180CM

14.Weight:Approx.80Kg

Automatic Insert Line Features:

1. this machine is used for the PCB board plug-in components for the assembly, it is used in front of wave soldering machine;

2. we can add tracheal tube, gas tube and other equipments;

3. this machine is made of aluminum which sized in 40*40mm.

4. the chain conveyor is smooth and reliable.

5. we can handle the speed by stepless frequency.
