SMT offline pcba cleaning machine 800

Concentrate tank capacity: 30L
Diluent tank capacity: 70L
Spray tank capacity: 17L-23L
Internal cavity temperature compensation power: 6KW
Solvent tank heater power: 9KW
Drying heater power: 6K

EMAIL

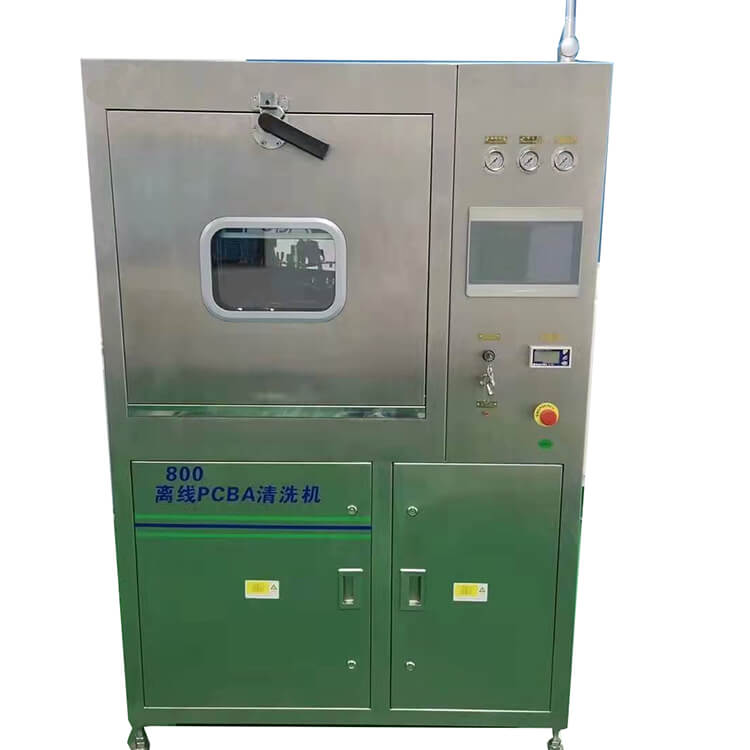

SMT offline pcba cleaning machine 800

800 CLEANING.jpg










The main technical parameters:

Appearance size: L1200 × W1100 × H1830 (mm)

Cleaning cavity size: L690 x W620 x H715 (mm) (the world's largest offline cleaning machine cavity)

Cleaning basket specifications: L610 x W560 x H100 (mm) double-layer design

Concentrate tank capacity: 30L

Diluent tank capacity: 70L

Spray tank capacity: 17L-23L

Internal cavity temperature compensation power: 6KW

Solvent tank heater power: 9KW

Drying heater power: 6KW

Cleaning method: 360 ° rotating spray cleaning

Cleaning time: 5 to 20 minutes (reference)

Rinse time: 1 2 minutes / time

Rinsing frequency: 1-10 times (set according to demand)

Drying time: 20 30 minutes (reference)

Monitoring range of resistivity meter: 0 18MΩ · cm

Dilute liquid heating temperature: room temperature 75 ℃

Heating temperature of spray liquid box: room temperature 75 ℃

Drying temperature: room temperature 99 ℃

Chemical liquid recovery and filtration: 0.22μm (filtering tiny particles of pollutants such as solder paste, rosin, flux)

DI water discharge filtration: 0.22μm (filtering tiny particles of pollutants such as solder paste, rosin, flux)

Water inlet: 1 inch quick junction interface

Drain outlet: 1 inch quick junction interface

Diluent drain port: 1 inch quick junction interface

Horizontal spray pump: 5.5kw

Exhaust size: Φ100mm (W) × 30mm (H)

Power supply / air source: AC380V 50HZ 65A / 0.45Mpa 0.7Mpa

Machine net weight: 400Kg
