Level 3 filtering 1um(Filters small particles and rosin)
Exhaust port size; φ120*40H(mm)
Net weight of machine; 200kg
Machine size;L945*W650*1650(mm)

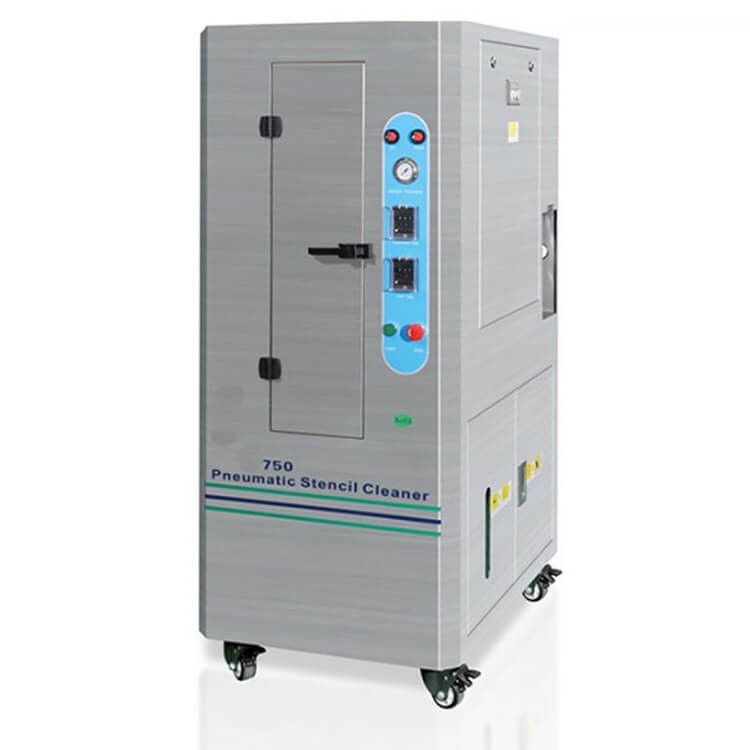

SMT stencil cleaning machine manufacturer750
Steel Net cleaning Machine Detailed introduction
Features introduced for the cleaning of solder paste, red plastic mesh plate and so on.
Full use of compressed air for energy, no electricity, no fire hidden danger closed-loop cleaning, cleaning liquid low consumption for cleaning SMT steel mesh solder paste, red glue and so on.
Equipment using high-precision 3-grade filtration system unique exhaust device design, lower liquid consumption of compressed air adaptability strong (0.45Mpa can work) really one-click operation, easy to complete cleaning, drying work
Equipment parameter:
Applicable stencil size | L750*W750*H400(mm)(Large size needs to be customized) |
Cleaning liquid capacity | 40L(MAX) |
Optimal liquid usage | 35L |
Cleaning method | 360 ° rotating cleaning liquid spray and high pressure air spray (washing → drying) |
Cleaning time | 2 ~ 5 minutes (conventional process) |
Drying time | 2 ~ 5 minutes (conventional process) |
External air source | 0.45mpa~0.7mpa |
Tin slag filtration method | Three-stage filtering |
Level 1 filtering | 10um(Filter impurities and labels) |
Level 2 filtering | 5um(Filter small particles and solder paste) |
Level 3 filtering | 1um(Filters small particles and rosin) |
Exhaust port size | φ120*40H(mm) |
Net weight of machine | 200kg |
Machine size | L945*W650*1650(mm) |
