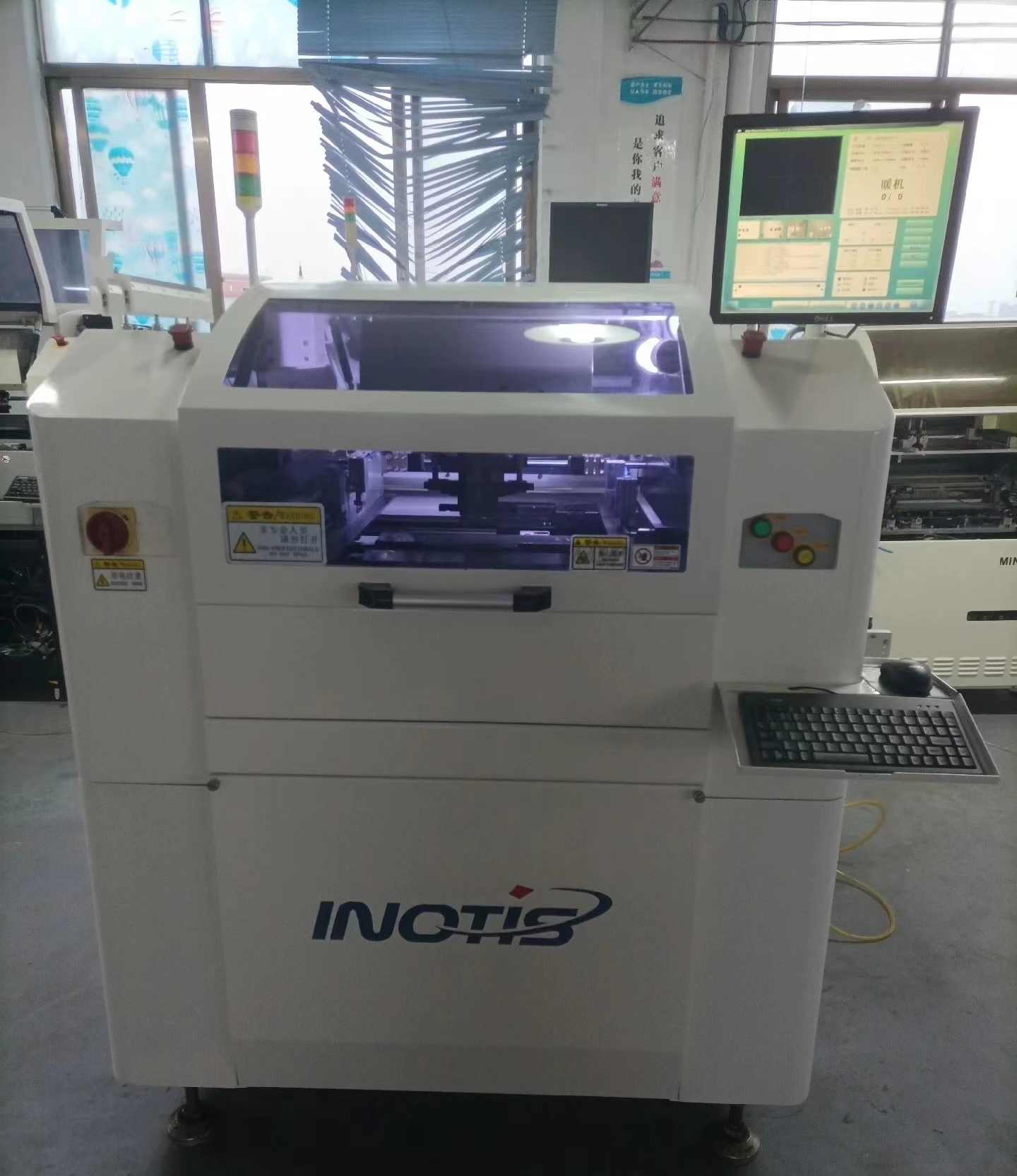

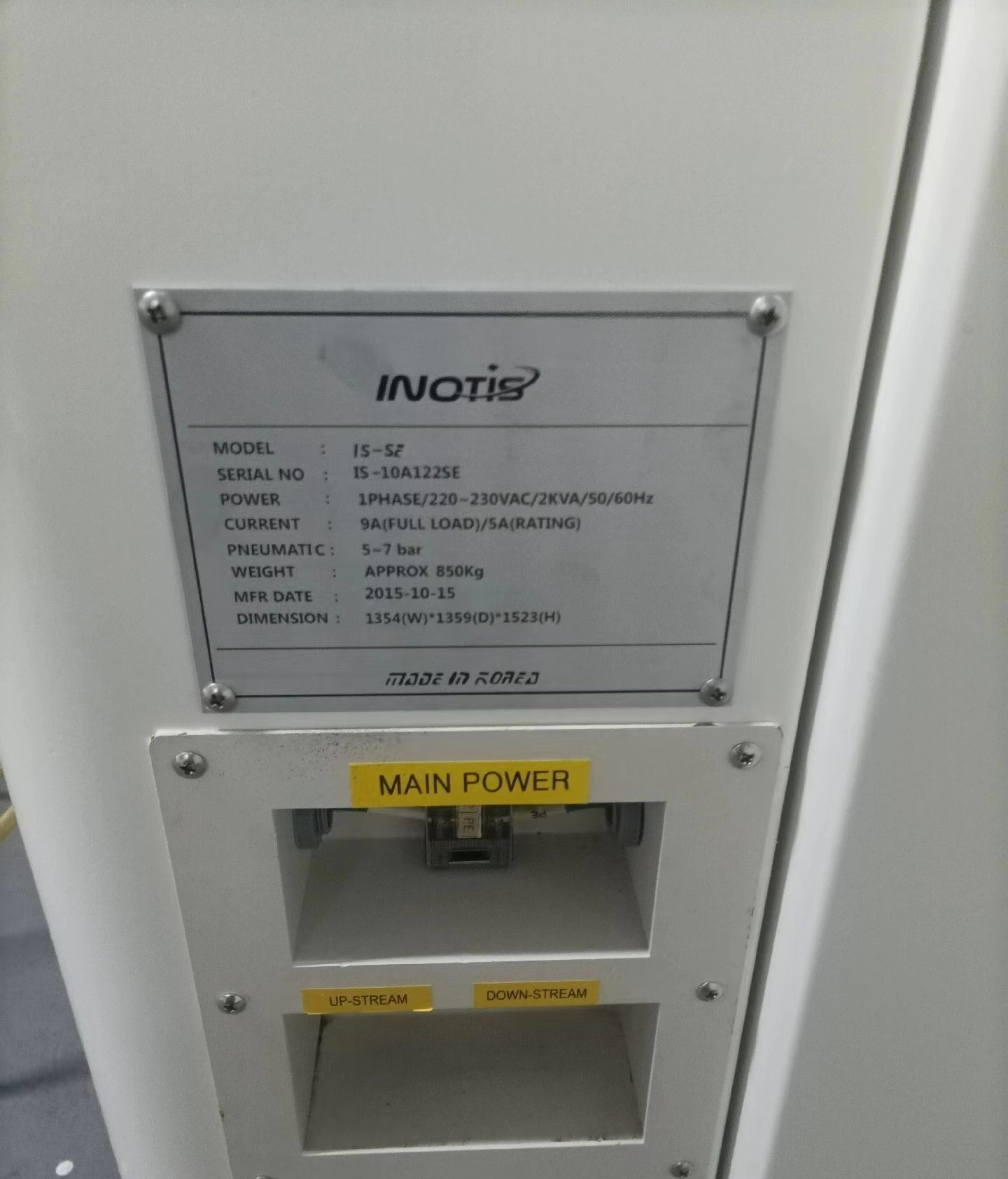

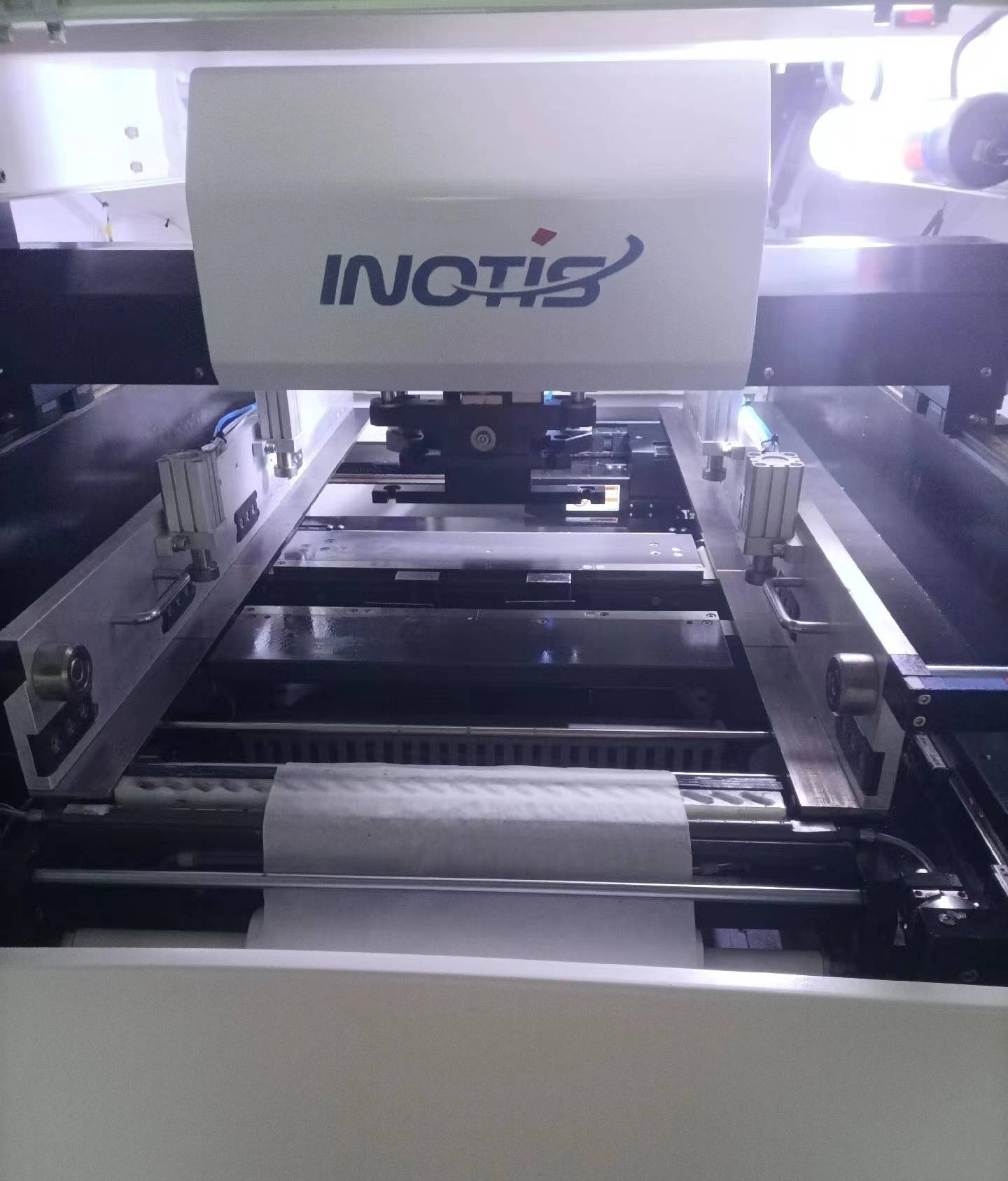

Automatic Solder Paste Printer Korea inotis

Operation interface

operating system

Windows XP Operation interface

Signal link

SMEMA signal connection

visual system

visual parameters

Upper and lower dual-view high-performance CCD and image processing system.

Printing accuracy

Repeat printing accuracy

±0.01

Printing accuracy

±0.025

Cycle time

printing cycle

<8sOne piece does not include print cleaning time

PCB parameter

Steel mesh size

370*370-737*737mm

Screen frame fixed

Cylinder

PCB size

Minimum 50*50, Maximum 400*340mm

PCB thickness

0.4-6mm

PCB weight

≤3kg

Support method

Magnetic ejector pin, magnetic ejector pin, manual crimping

delivery system

One-stage conveyor system。

Transmission direction

Left-right, right-left, left-left, right-right, (software control)

UVW platform adjustment range

Not lower than X: ±3mm, Y±7mm.e; ±2 degrees

Platform/Transport Parameters

PCB Transmission height

900±40mm

Platform adjustment angle

Z:±2 degree

Scraper speed

Printing parameters

Squeegee pressure

0.5-10kg

demoulding speed

0-20mm/s adjustable

scraper angle

Standard 60 degrees

Wipe the net way

Free combination of dry/wet modes

Whole system

software

Free lifetime maintenance and free lifetime upgrades

Gas source

4-6kgf/cm2

main power supply

AC:220±10%,50/60HZ 1Φ 1.5KW

physical dimension

1120*1320*1510
