Samsung SM310 pick and place machine

Speed 30000CPH
Equipment size L1650xW1680xH1530mm
weight:1800kg
Component range 0603 ~ 24mmCHIP
Product description: Samsung SM310 Chip Mounter, Speed 30000CPH, Component range 0603 ~ 24mmCHIP, weight:1800kg, Equipment size L1650xW1680xH1530mm

EMAIL

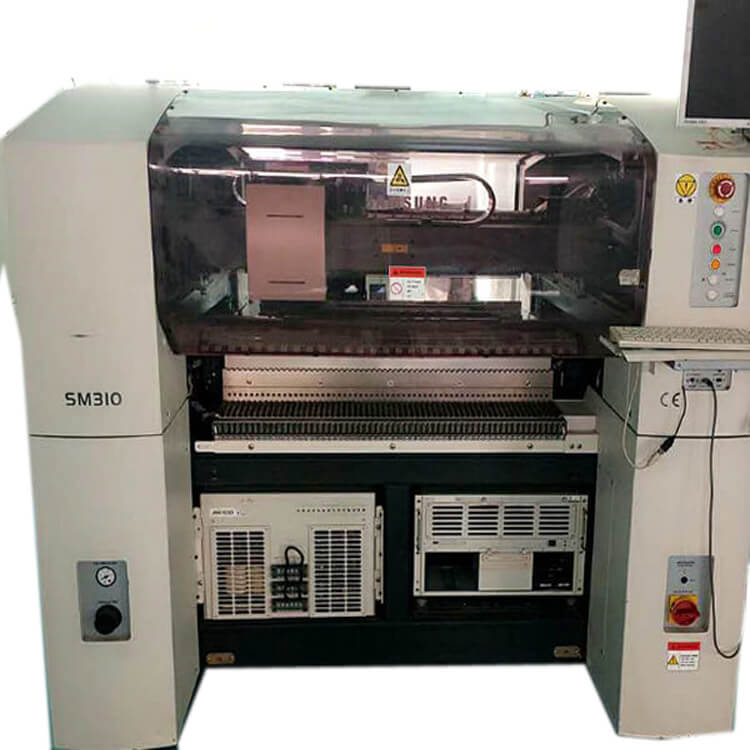

Samsung SM310 pick and place machine


samsung 310.jpg

USED Samsung SM310 Chip Mounter

Speed 30000CPH, placement range: 0201 0402 0603 0805 ~ BGA
Rated power 3-phase 200/208/220/240/380 / 415V 50 / 60Hz 4KVA
Pressure / weight 0.49-0.78MPa 170L / min 1800kg
Equipment size L1650xW1680xH1530mm
Patch speed of 30,000 tablets / hour
Object Component Flight Vision 1005-22mm / Fixed Vision 0603-32mm
The station number up to 120 stations 8mm braid
Target substrate L50xW50-L460xW400mm

Component identification method
Full vision (Line scan optical)
Mounting efficiency
Linear Optical Scan LSO
CHIP 1608 30000 CPH (IPC9850)
CHIP 1005 29500 CPH (IPC9850)
CHIP 0603 29500 CPH (IPC9850)
SOP 20000 CPH (IPC9850)
Mounting accuracy
CHIP± 50? @ 3σ / CHIP
Minimum spacing between components
0.1mm (0603) /0.15mm (1005)
Components can be mounted range
Component range
0603 ~ □ 24mmCHIP, QFP, BGA (0402 Option)
Minimum pin pitch / QFP, minimum ball pitch / BGA
0.65mm (QFP) /1.0mm (BGA)
Component height
H8mm (Line scan camera standard)
PCB board size
smallest size
50L * 40W


510L * 420W (single track)
510L * 220W (double track)
510L * 500W (single track, optional)
PCB thickness
0.38mm-4.2mm
Install the number of feeder 120ea / 112ea (docking cart)
Pressure and power consumption
Power Supply AC220 / 220 / 240V (50 / 60HZ, 3 PHASE) RMS 3.4kva (MAX.8.9KVA)
Air pressure: 5kg / ㎡, 260 NI / MIN
Machine weight: 2.200KG
Machine Size: 1797 (L) * 1870 (D) * 1527 (H)
