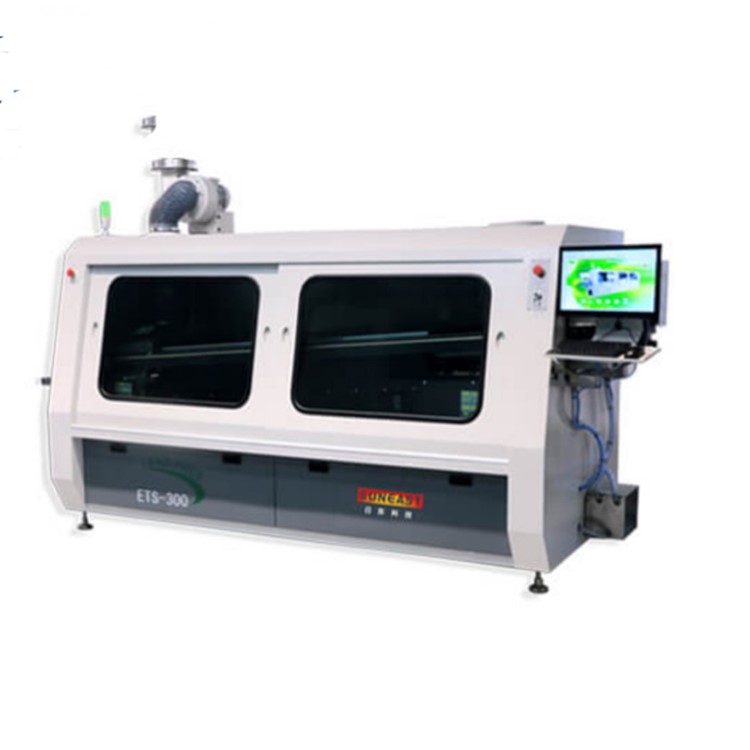

Small wave soldering machine ETS-300

Small wave soldering machine ETS-300

Product features: • Compact structure, small footprint, save space; • PC+PLC control system; • Infrared preheating, high thermal efficiency, good temperature uniformity; • Spray is driven by a stepper motor, more stable and reliable; • Use shrink Capacity tin furnace, reduce cost investment.

Product features: • Transmission system: direct-connected into the board structure, special stainless steel chain transmission, unique design of aluminum alloy rails, durable; • Transportation system: the use of segmented floating structure to effectively prevent rail deformation; • Preheating system: using Drawer-type modular energy-saving design, infrared preheating, temperature control mode adopts PID mode, so that the temperature control accuracy reaches ± 2 °C, the temperature drop value of the preheating zone and welding zone ≦ 5 °C; • Spray system: using precision Type control valve is digitally adjusted for easy management. Nozzle movement is controlled by stepping motor. The flux is automatically regulated and supplied, which can quickly saturate the spray flow, the top exhaust, and the filtration system; • The copper furnace is externally heated, the inner pot of the tin furnace is made of cast iron, the inner surface is anti-corrosive, and two low-flow nozzles 3. Low-oxidation design; • Forced natural air cooling system; • PC+PLC control system, Windows 7 operating system, Chinese/English operation interface, process curve/data automatic storage function, low and high flux level alarm, tin Low liquid level alarm.
