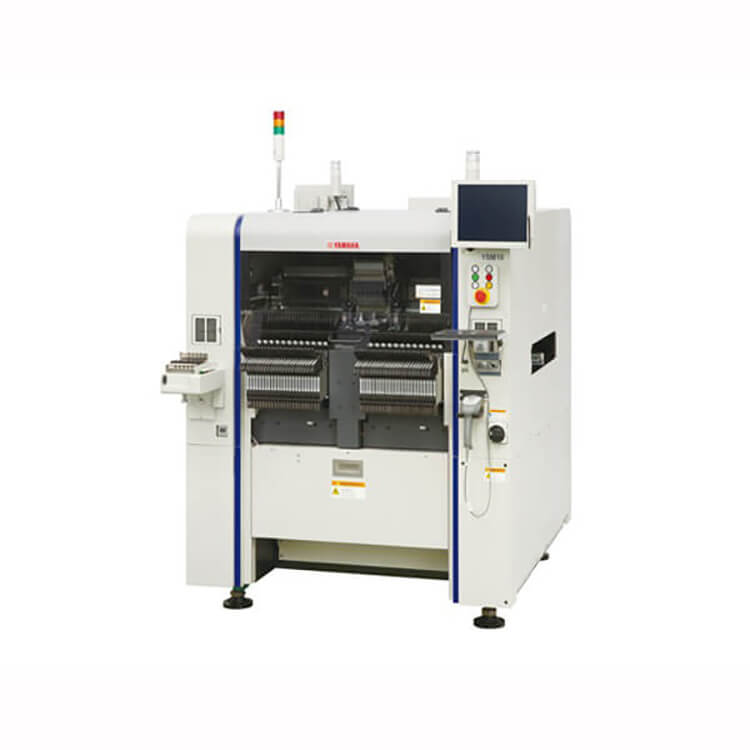

Yamaha YSM10 Pick and Place Machine

Yamaha YSM10 Pick and Place Machine

Product Features

1) Speed increases of 25% or more on conventional models and achieving the world's fastest mounting capacity
HM head adopted with new scan camera for broader range of component size compatibility

Based on the ideal concept 1-head solution capable of handling a wide range of components while maintaining high speed without the need for head replacement, we introduced various technologies cultivated from upper model Z:LEX YSM20. By adopting the latest technology such as the same lightweight and compact universal type HM (High-Speed Multi) head as the upper model and the new generation servo system, increases of 25% or more are achieved compared with conventional machines (YS12) in the 1-Beam 1-Head machine class to realize a mounting capacity of the world's fastest at 46,000 CPH (in the Company's optimum conditions) At the same time, it is versatile enough to handle from 03015 (0.3mm x 0.15mm) ultra-small chips to large components of 55mm x 100mm and 15mm in height.
In addition, by improving the performance of the scan camera, we have expanded the range of component size compatibility for high-speed mounting from 8mm to 12mm, further enhancing real productivity.
Although the standard HM head is a ten-nozzle based specification, the HM5 head with 5 nozzle specification is also available and can be selected according to the production type and budget.

2) Scalability for flexibly adjust to production site requirements

A range of options are available for selection including the sATS15, an automatic replacement type tray component supply device, the ANC, an auto nozzle station capable of automatically changing nozzles, the multi camera which recognizes components exceeding 6.5mm in height or over 12mm square in size at high speed and high precision. This machine can flexibly adapt to a range of circuit board sizes and mounted components.
The tape feeder is supported by the electric intelligent feeder SS feeder and ZS feeder used in the YS series.

3) Enhanced functionality to provide for table production

Pickup and recognition errors are suppressed along with reduced loss in machine stoppage due the integration of the common functionalities of the top machines of the Z:TA-R YSM40R and the Z:LEX YSM20 with their e-Vision for automatically creating and tracking components data, Smart Recognition for easily creating components data from complicated shapes, Pickup MACS*1, the component pickup position automatic correction system, and CE marking*2 to ensure safe device design.

*1: MACS (Multiple Accuracy Compensation System)
*2: Representative name of safety standard required for machines in the European region.

Basic Specifications
