high quality multi-style smt conveyor for convey pcb board

PCB Width 50~350mm
PCB Direction L to R or R to L
Speed 0-2000 mm/min

EMAIL

high quality multi-style smt conveyor for convey pcb board


1.Elaboration M lead screw, hand width-adjusting system to make 2 conveyor tracks move smoothly.

2.Imported circular special belt and patent tracks, can solve thin card guide PCB problem, improve fluency of connection.

3.Standard signal of industry for equipments, SMEMA can connect with others automatically on line.

4.Machine area made by thickened models or section Aluminum, with superior materials durable service and seed firm.

5.Applicable to production line of SMT and AI, facilitate to connection of equipments before and after.

6.When PCB move interposition during transmitting, it has the function of photo electricity automatic inspection and manual releasing.

Brand

YFX

 Item

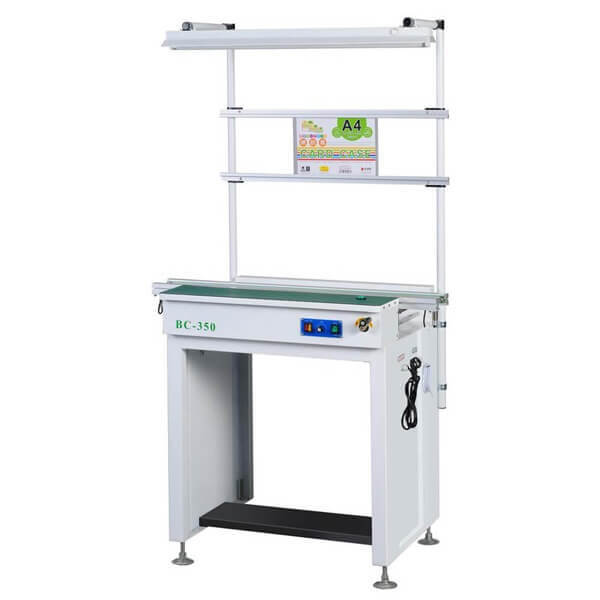

BC-350

Outer Dimension

500*700*940mm-1500*700*940mm

PCB Width

50~350mm

PCB Direction

L to R or R to L

Speed

0-2000 mm/min

Motor

1P AC220V 50/60HZ 15W

Power Supply

1P AC220V 50/60HZ

Rail length

up to your request

Control System

PLC

Foot switch

standard

Lighting

Option

SOP Rack

Option

Platform material

ESD Rubber Mat

Communication plug

SMEMA Signal plug for up & down line

Weight

Approx.55Kg-85kg

7. Increasing weight at the bottom to make machine uneasy to be moved, make connection more smoothly.


Specification:

Parts List

Name

Brand

Motor drive

VTV

Gear box

VTV

Speed controller

VTV

Bearing

NSK   Japan

Photoelectronic switch

SICK Germany

Width adjustment

Stainless   Steel ball screw

Transmission shaft

Six stainless steel angle

Structure

Aluminum frame
