pcb screening smt automatic lifting machine

Power Source 220-230VAC(specify),1ph
Power Consumption180VA max
Air Pressure 4-6 bar

EMAIL

pcb screening smt automatic lifting

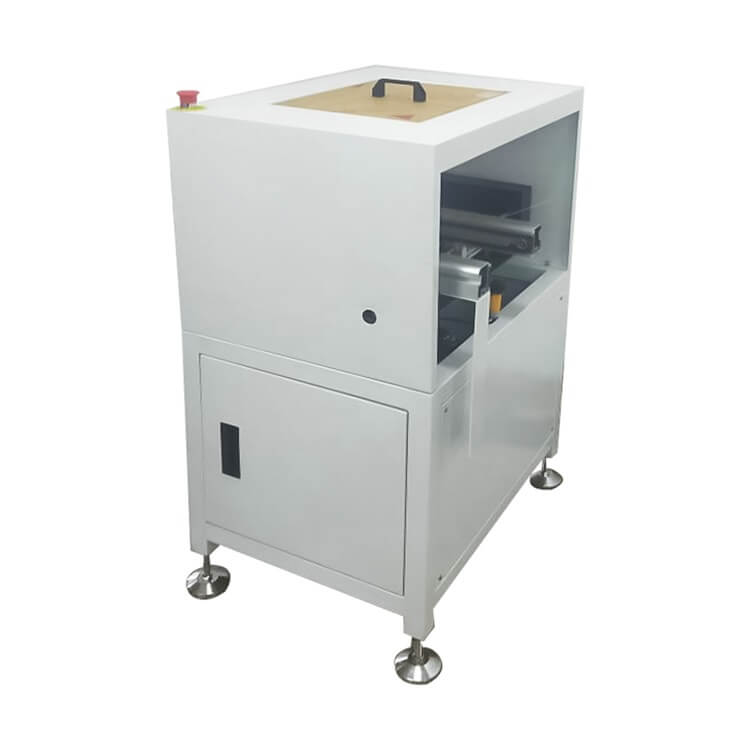

lifting 1.jpg

Lift technical parameters:




Features:

Closed design guarantees the highest level of safety protection

The top safety cover can be opened for easy handling of the machine hardware during maintenance.

 Easy to use touch screen function control interface

 Adjustable position of the board and the board to ensure accurate alignment of the PCB board

Stable balance width adjustment device (hand crank control screw adjustment)

 Smaller machine footprint

Compatible SMEMA interface

Technical Parameters:

Description



This unit is used for loading lf bare PCBs onto the production line



 Cycle Time

Approx. 10 seconds

 Power Source



 220-230VAC(specify),1ph

Power Consumption

180VA max

Air Pressure

 4-6 bar



Conveyor Height

 900±20mm (Or user specified)

 900±20mm (or specify)

  750±20mm (Or user specified)

  750±20mm (or specify)



 PCB Conveyor Direction



 L→R / R→L

Specifications:

 Model

SD-300

Effective PCB Size
(L×W)~(L×W)



(50x50)~(500x300)



Dimension
(L×W×H)



600x750x1250



 Weight

Approx.110kg
