Rail Conveyor System：
The rail track is dealt with a hardening process to make it more reliable.
95% material of reflow oven can be recycled;
The patented optimized structure design can minimize the influence of the chamber to environmental temperature;
The automatic flux collection system is easy for maintenance.

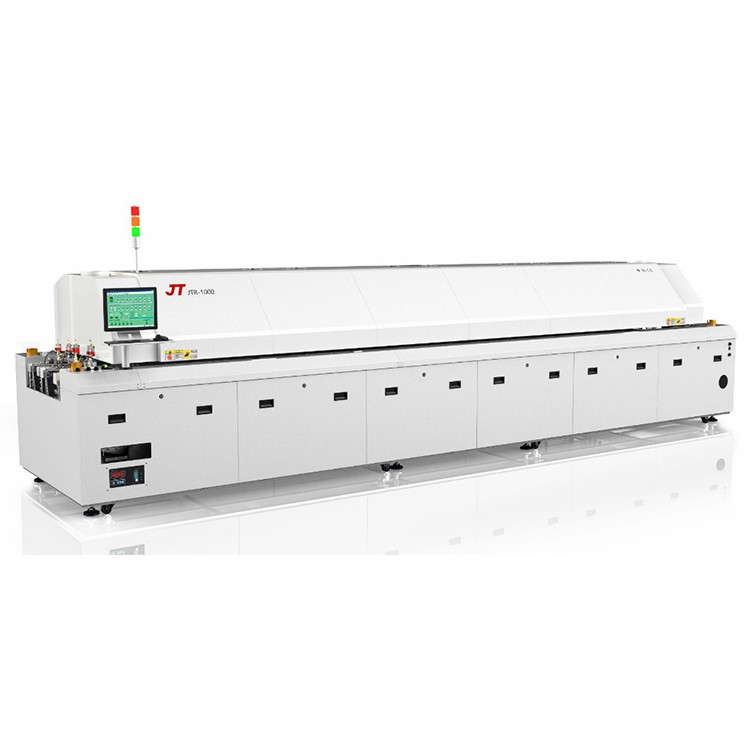

reflow oven machine JT 1000
● Rail Conveyor System：
The rail track is dealt with a hardening process to make it more reliable.
● 95% material of reflow oven can be recycled;
● The patented optimized structure design can minimize the influence of the chamber to environmental temperature;
● The automatic flux collection system is easy for maintenance.
Model No. | TEA-1000 |
Specification | |
Heated Length | 3890mm |
Dimensions (L×W×H) | 6000x1430x1530mm |
Net Weight | Approx.2600KG |
Exhaust Volume | 10 m³/min×2 Ducts |
Supply Power | AC; 380V 3Φ5w 50/60HZ; （Option: 220V 50/60HZ） |
Power | Starting: 36KW Operating: 10KW |
Heat up Time | Approx.25min |
Temp. Range | Room temperature -300°C |
Max. Width of PCB | 400mm（ Option: 450mm ） |
PCB Top Height | Top 30mm/Bottom 25mm |
Conveyor Direction | Left to Right（ Option:Right to Left ） |
Fixed Rail Side | Front Rail Fixed （ Option:Rear Rail Fixed） |
Conveyor Height | 900±20mm |
Conveyor Speed Range | 300-2000mm/min |
Data Storage | Various parameters and storable |
Abnormal Alarm | Abnormal Temp. (Over/under-heat.) Sound & Light Alarm |
Device Layout | |
NO.of heating zones | Top 10, Bottom 10 |
NO.of cooling zones | Top 2 Cooling Zones |
Control System | WIN10 + Computer + PLC |
Temp. Control Method | PID+SSR |
Thermocouple Wire | 4 wires |
Conveyor System | Single Rail+ Mesh |
Conveyor Control Mode | Inverter + Import Conveyor Motor |
Chain Structure | Single side link avoid block |
Width Adjustment | Electric adjustable |
Cover Open | Electric open for easy maintenance. |
UPS Power | Backup power supply to ensure PCB production finish normally. |
Cooling System | Forced Air Cooling |
