Wave soldering machine out feed conveyor

Demensions(L×W×H) 1200*490*1200(mm)
PCB width 0-400(mm)
PCB direction L-R
Conveyor speed 0-4000(mm)/Min

EMAIL

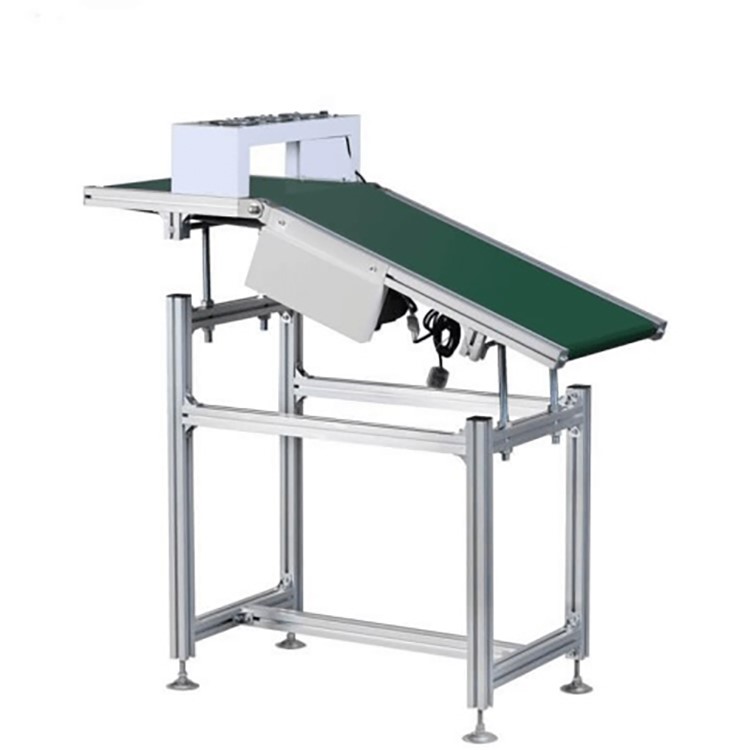

Wave soldering machine out feed conveyor



1.It is used to unload PCB’s or pallets from wave soldering machine at 6-7°.

2.Transmission speed, transfer height and track angle can be adjusted.

3.Cooling fan can be installed so that it can protect the PCBs or the component.

4.Special belt and track, transmission smooth, and work stable and reliable.

Specification:

Model

OUC-400

Demensions(L×W×H)

1200*490*1200(mm)

PCB width

0-400(mm)

PCB direction

L-R

Conveyor speed

0-4000(mm)/Min

Motor

1P AC220V 50/60HZ 15W

Power supply

1P AC220V 50/60HZ

Conveyor Height

750-1200mm(adjustable)

Belt Material

ESD Belt

Conveyor length

400±800(mm)

Weight

Approx.48Kg
