PCB Width 50 to 350 mm
PCB Direction L to R or R to L
Speed Adjustable
Switch Foot Switch
Control System PLC

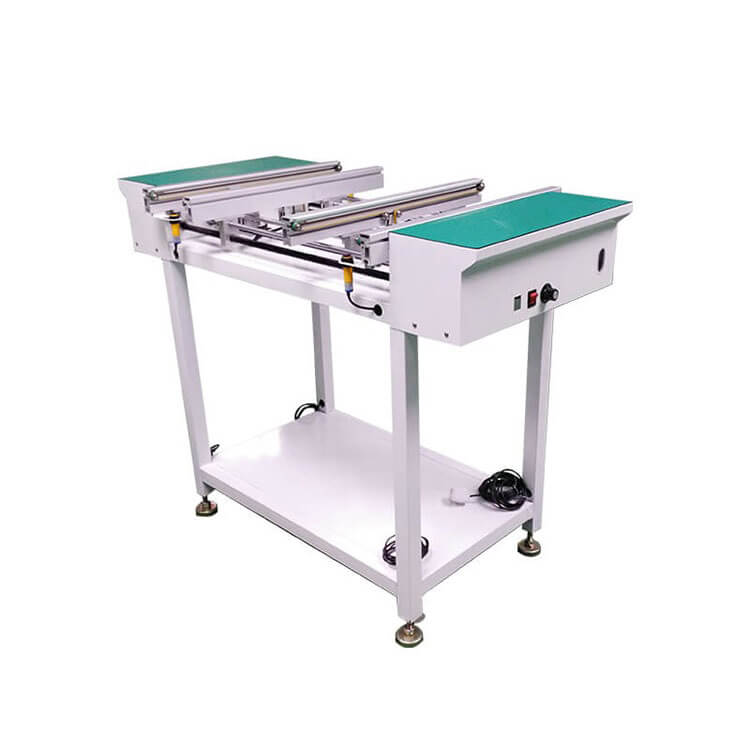

SMT PCB doub rail Conveyor
1 Modular design, optional assembly as per client’s requirement.
2 Rugged steel design, improves equipment stability .
3 Smooth stainless steel screw to adjust the width of the rail.
4 Variable speed control.
5 Circuit board testing mode.
6 Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7 Heavier bottom design, not easily shift.
8 Machine length can be customized.
9 Compatible with SMEMA interface.
Specification:
Standard SMT link/inspection Conveyor | ||||||
Rail Length(mm) | 500 mm | 600 mm | 1000 mm | 1200 mm | 1500 mm | 2000 mm |
Dimension (mm) | 500*700*950 | 600*700*950 | 1000*700*950 | 1200*700*950 | 1500*700*950 | 2000*700*950 |
PCB Width | 50 to 350 mm | |||||
PCB Direction | L to R or R to L | |||||
Speed | Adjustable | |||||
Switch | Foot Switch | |||||
Control System | PLC | |||||
Lighting | Optional | |||||
SOP Rack | Optional | |||||
Platform Material | ESD Rubber Mat | |||||
Communication | SMEMA for both in & out | |||||
Power Supply | 1 PH AC 220V 50/60Hz (Option:110V to 380V) | |||||
Weight | 70 Kg | 75 Kg | 95 Kg | 105 Kg | 125 Kg | 150 Kg |
